Full Flow Collection

The Full Flow Collection

Your cooling system, upgraded the right way.

The Full Flow Collection replaces bulky rubber hoses and clamps with precision-machined fittings and tightly braided hose that increase flow, improve reliability, and clean up your entire engine bay.

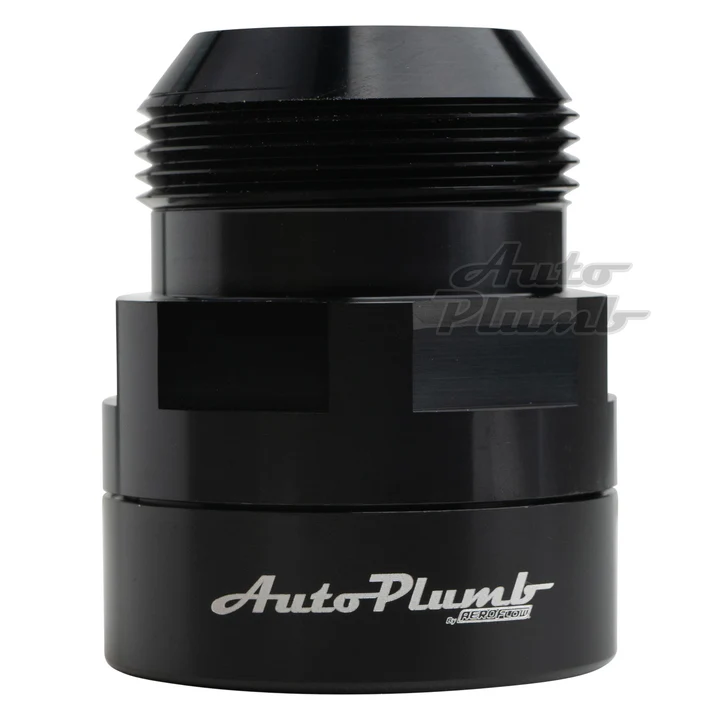

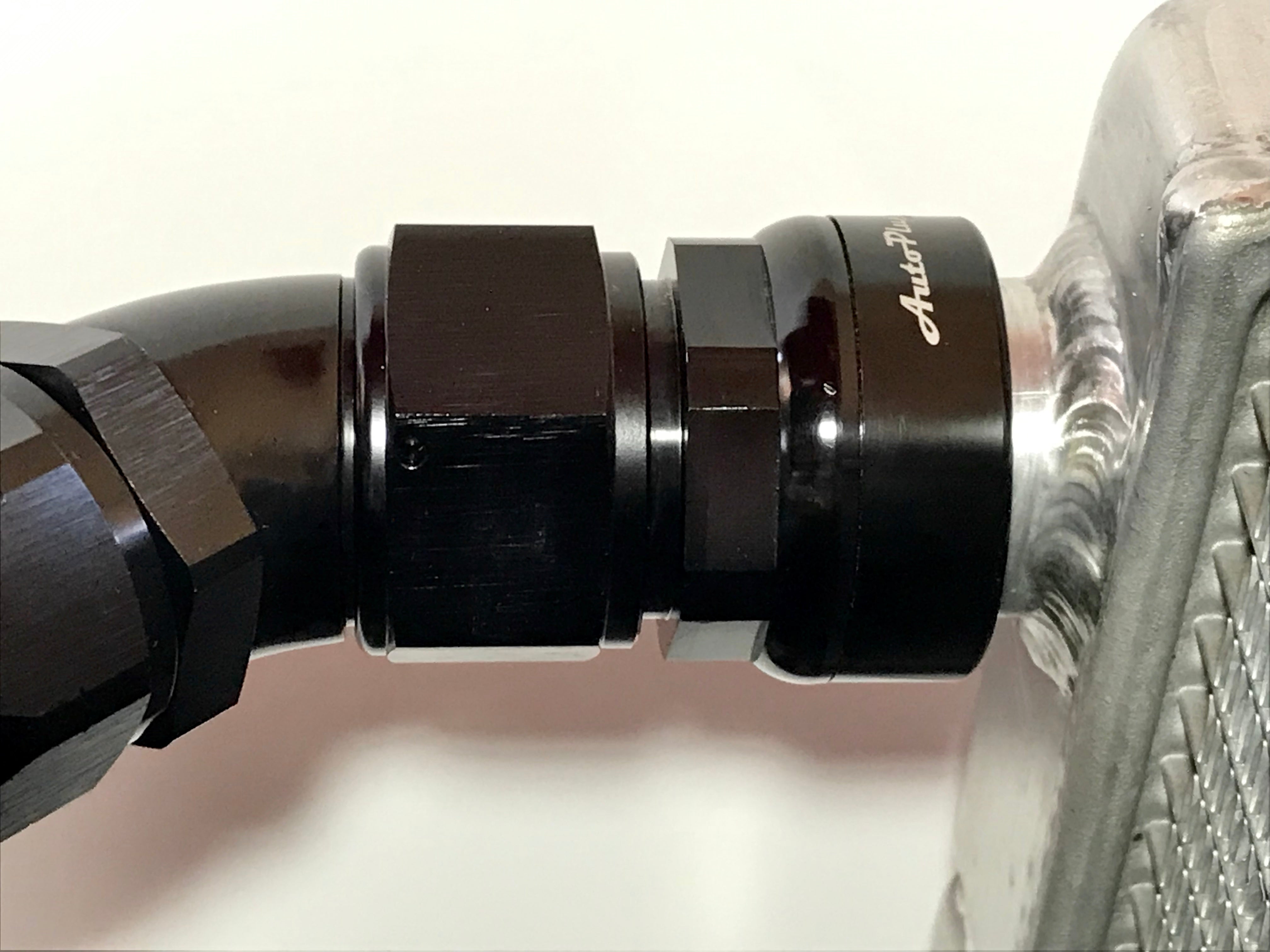

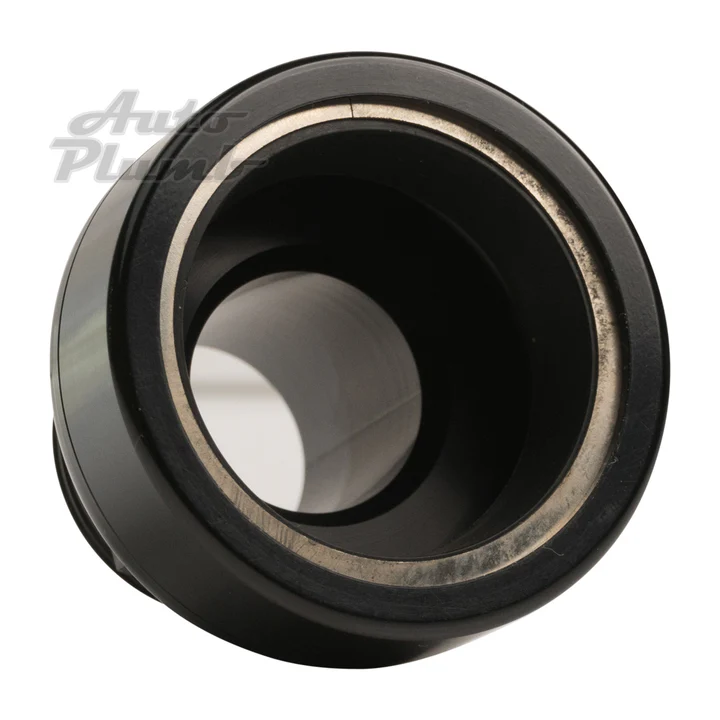

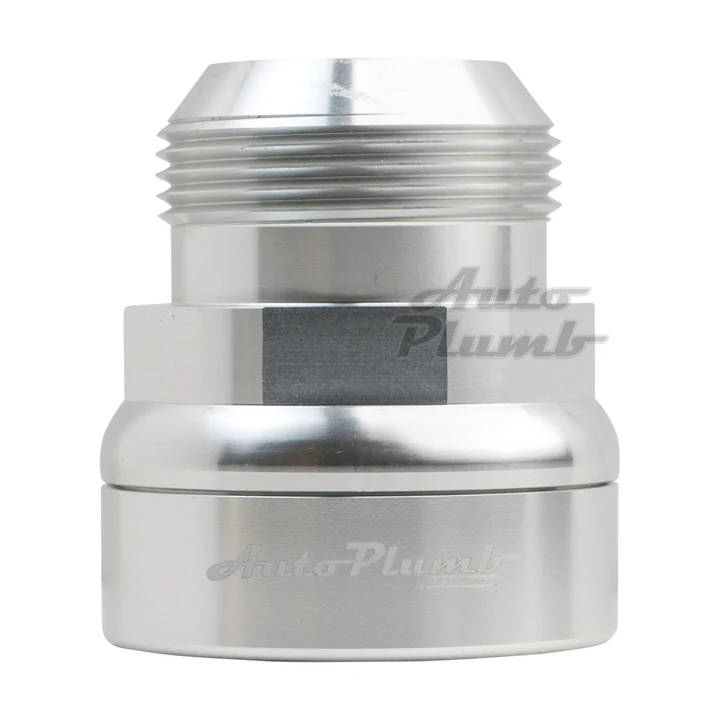

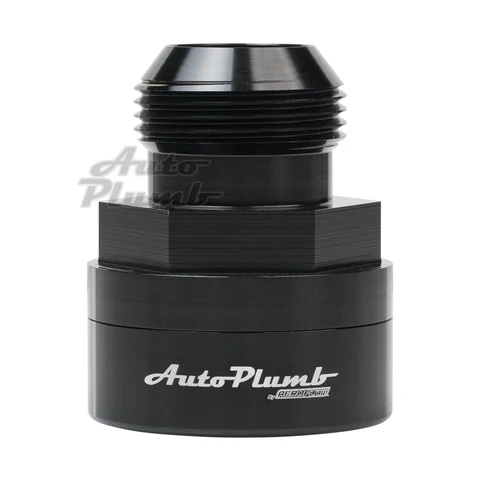

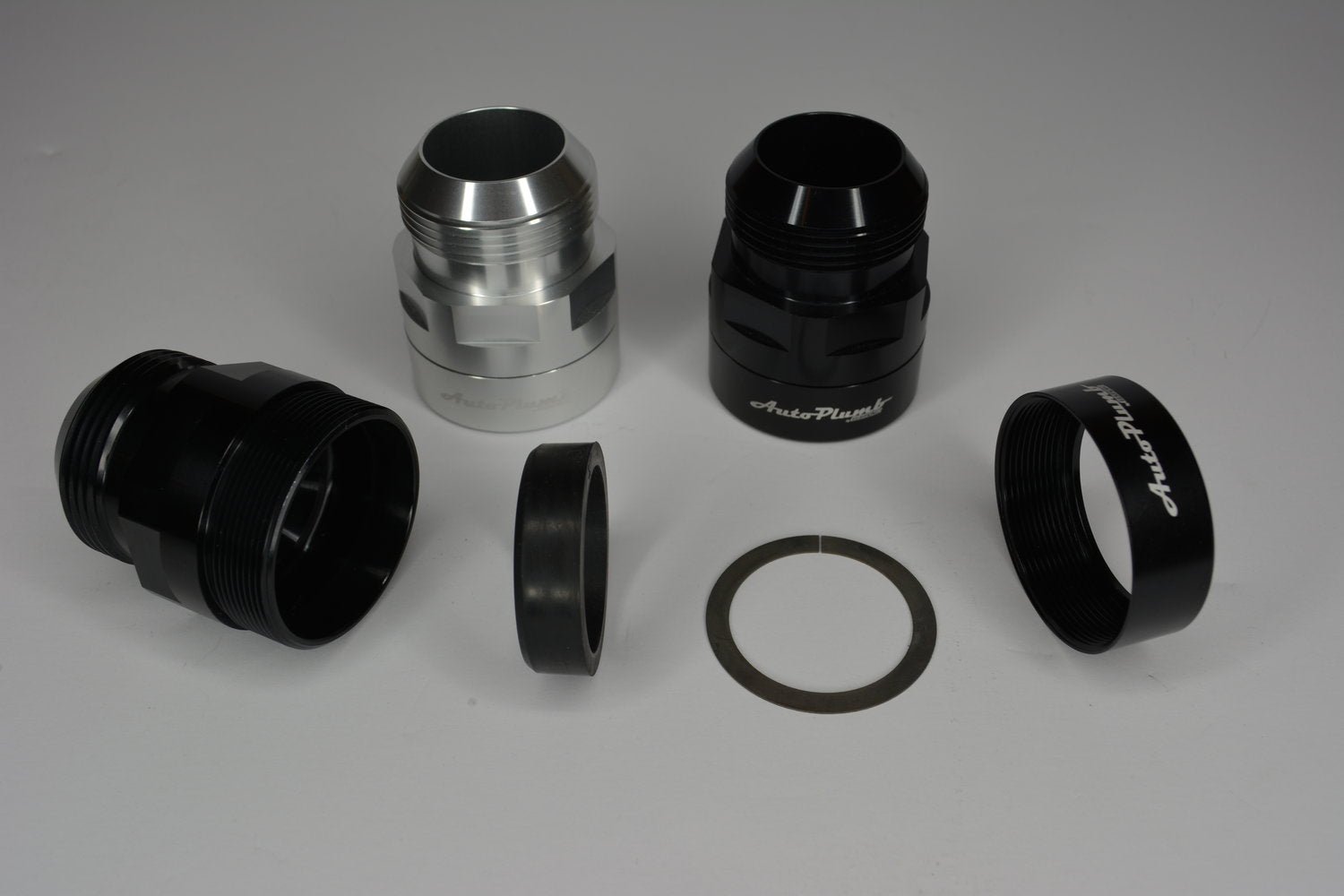

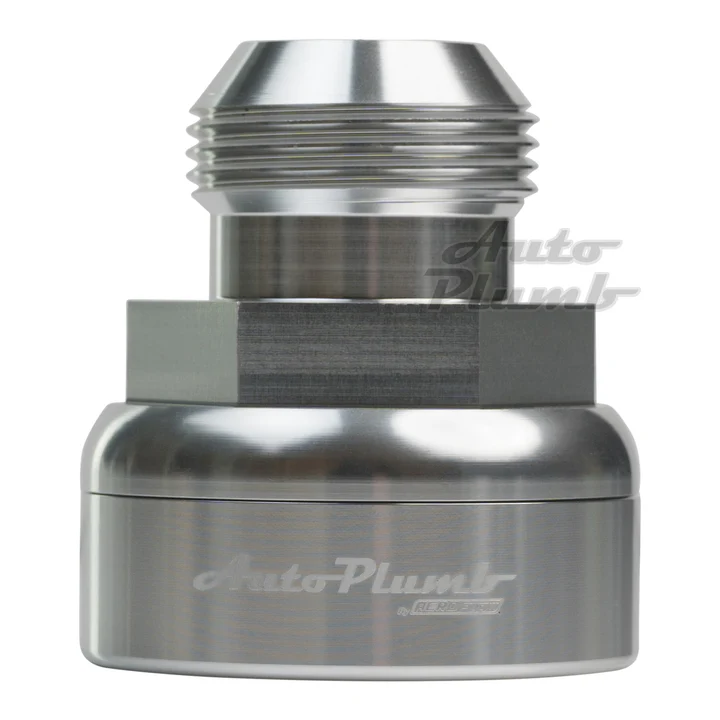

-16AN & -20AN Water Neck Adapters

$69.95

View Product

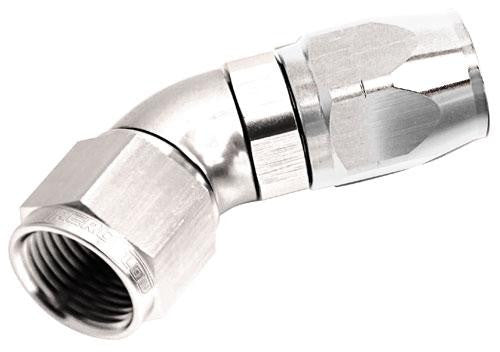

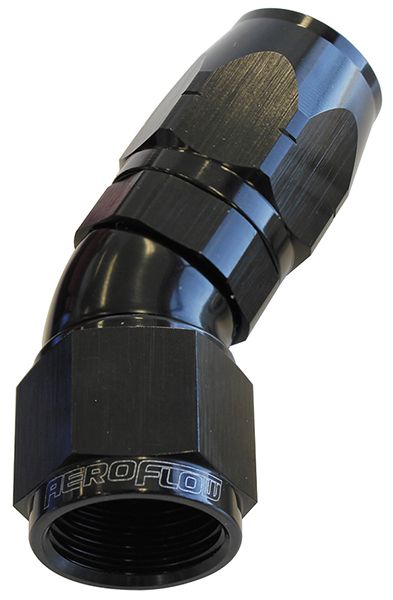

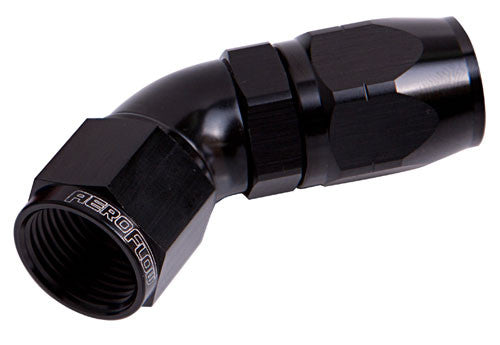

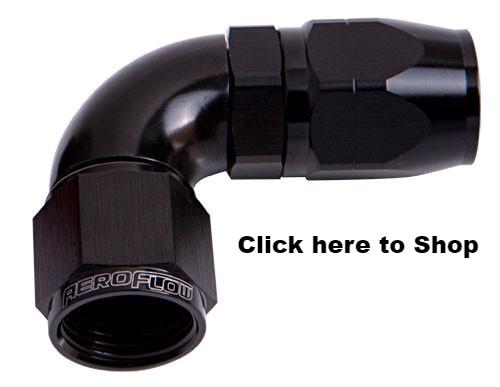

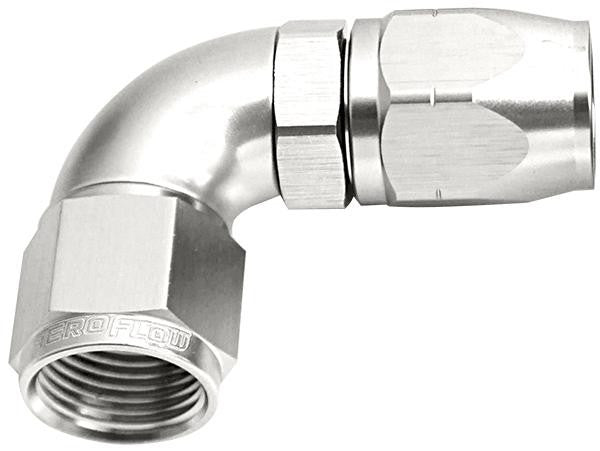

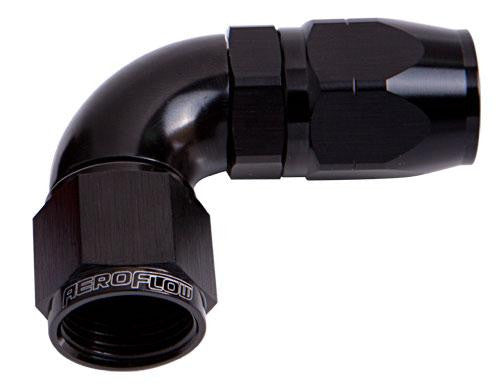

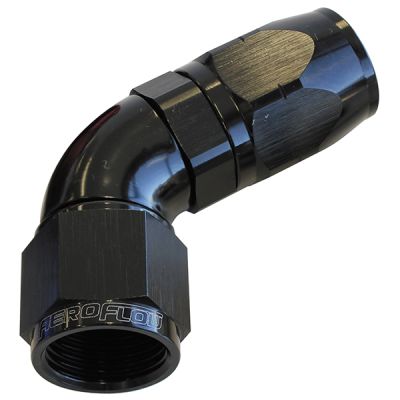

-20AN One Piece Full Flow Swivel Hose Ends

-20AN One Piece Full Flow Swivel Hose Ends

$39.95

View Product

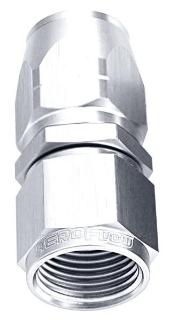

-16AN Full Flow Swivel Hose Ends

$29.95

View Product

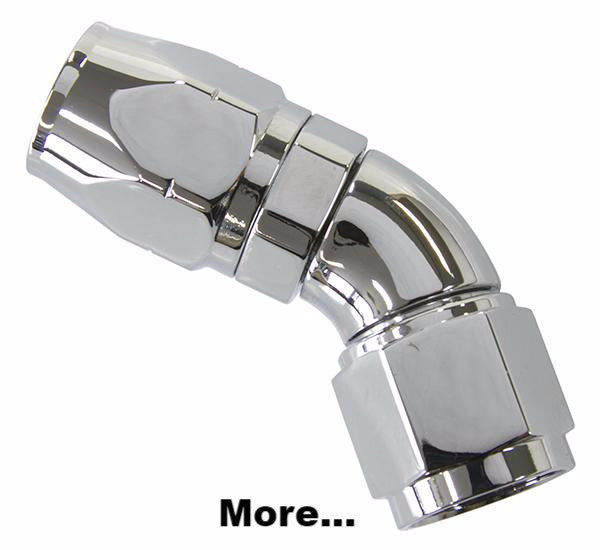

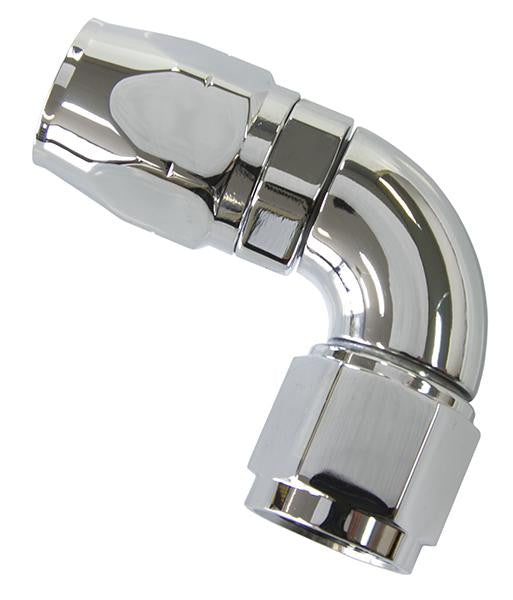

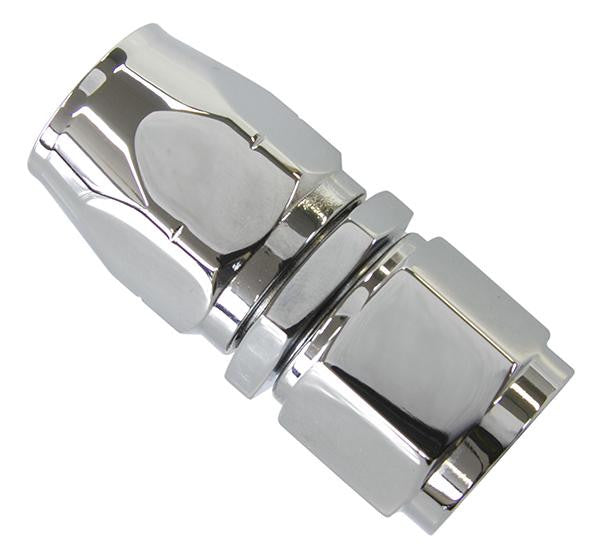

-20AN 880 ELITE Series Cutter Style One Piece Full Flow Swivel Hose Ends

-20AN 880 ELITE Series Cutter Style One Piece Full Flow Swivel Hose Ends

$54.95

View Product

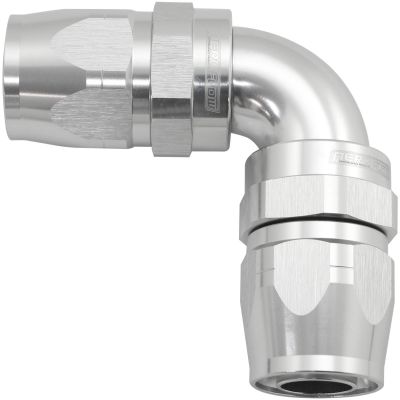

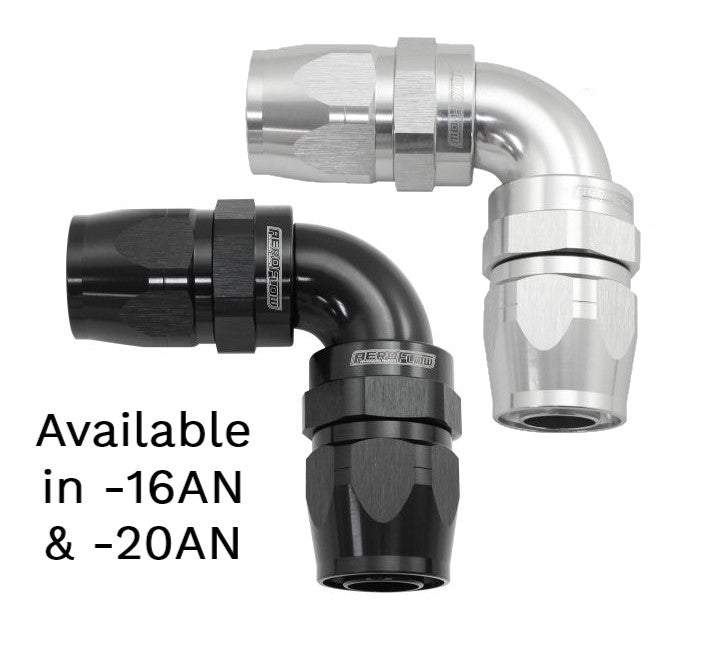

-16AN & -20AN 853 Series Cutter Full Flow 90° Dual Hose Ends

-16AN & -20AN 853 Series Cutter Full Flow 90° Dual Hose Ends

$49.95

View Product

SBC/BBC Swivel Thermostat Housings

$65.95

View Product

SBF Windsor Swivel Thermostat Housings

$65.95

View Product

LS 1 & 2 Swivel Thermostat Housings

$65.95

View Product

LS3 Swivel Thermostat Housings

$94.95

View Product

-16AN & -20AN , 1.5" Hose. BB Ford & SBF Cleveland Swivel Thermostat Housings

-16AN & -20AN , 1.5" Hose. BB Ford & SBF Cleveland Swivel Thermostat Housings

$94.95

View Product

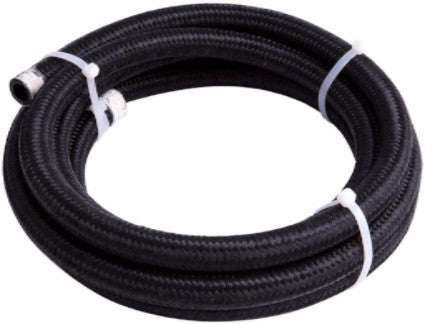

By the Foot , -20an Black Nylon & Stainless Steel Hose

By the Foot , -20an Black Nylon & Stainless Steel Hose

$28.50

View Product

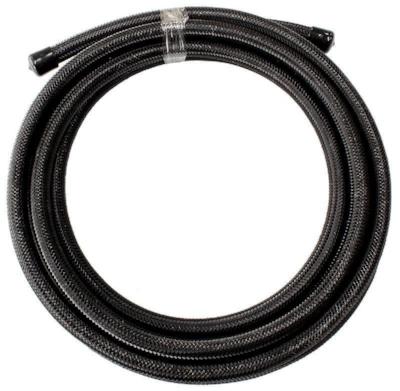

By the Foot , -16an Black Nylon & Stainless Steel Hose

By the Foot , -16an Black Nylon & Stainless Steel Hose

$16.80

View Product

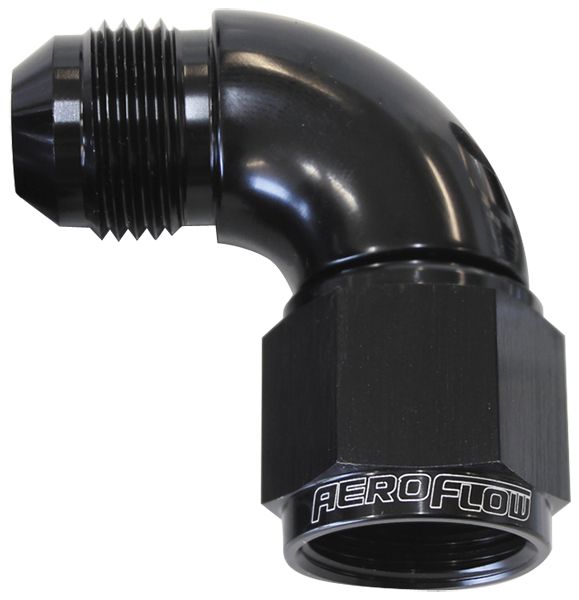

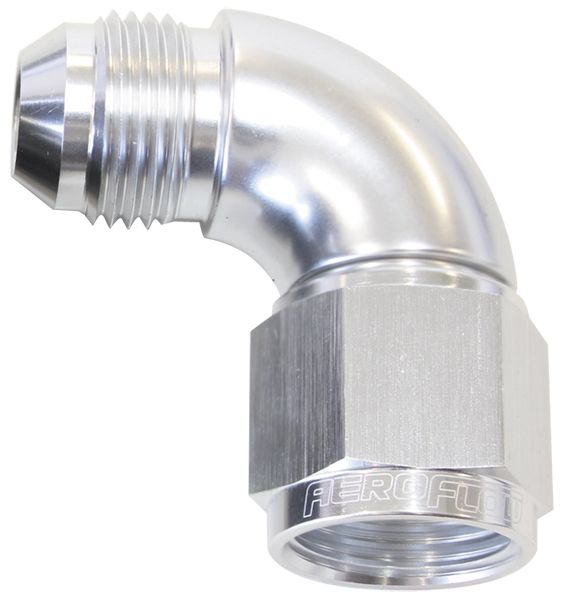

90° Full Flow Female/Male Flare Swivel

$34.95

View Product

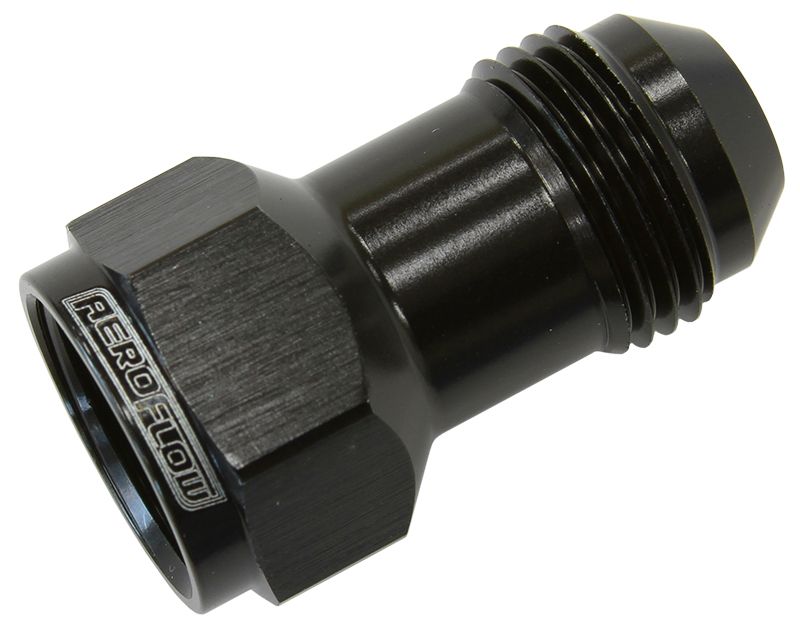

AN Female to Male Extension

$22.74

View Product

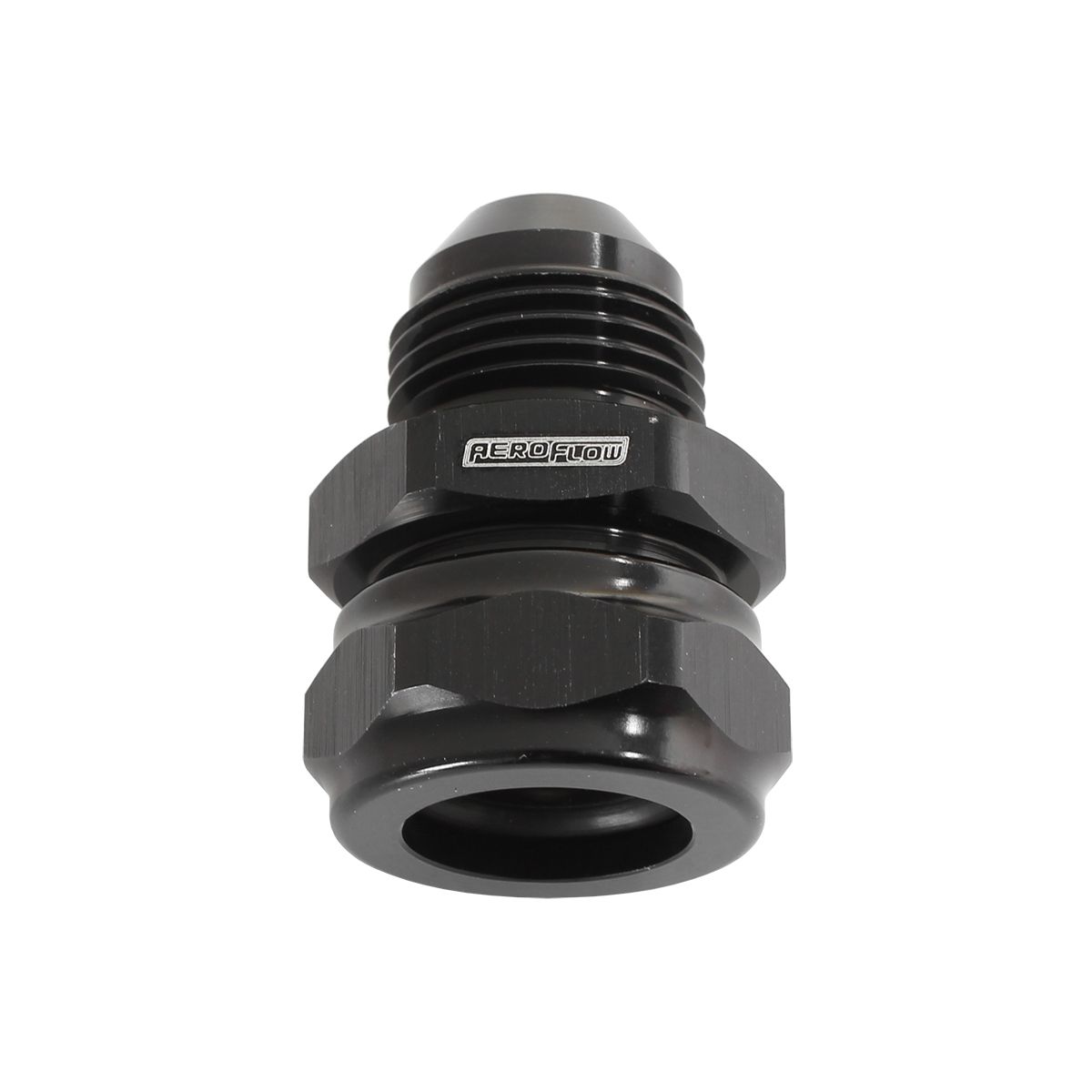

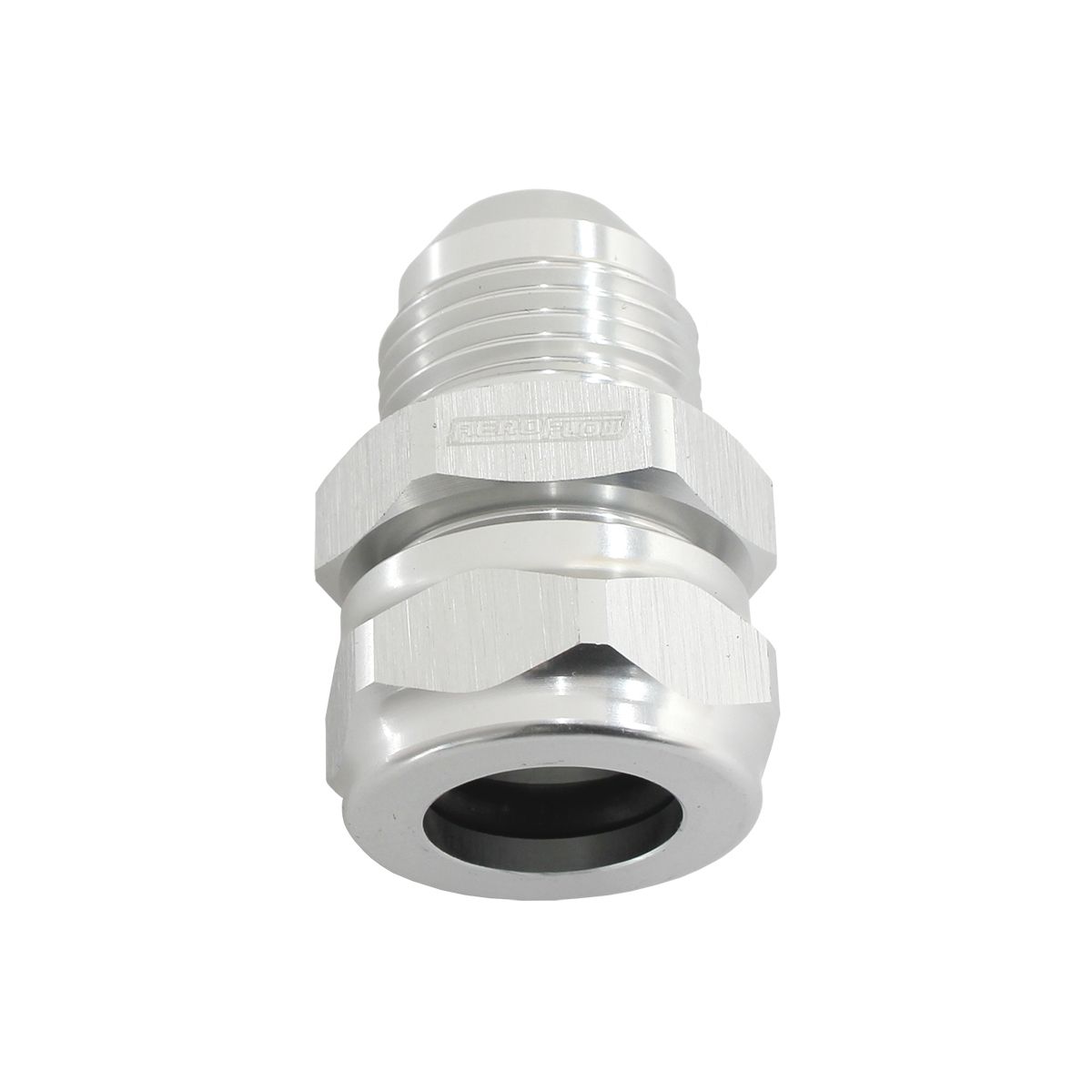

Hose Barb to AN Adapters

$13.14

View Product

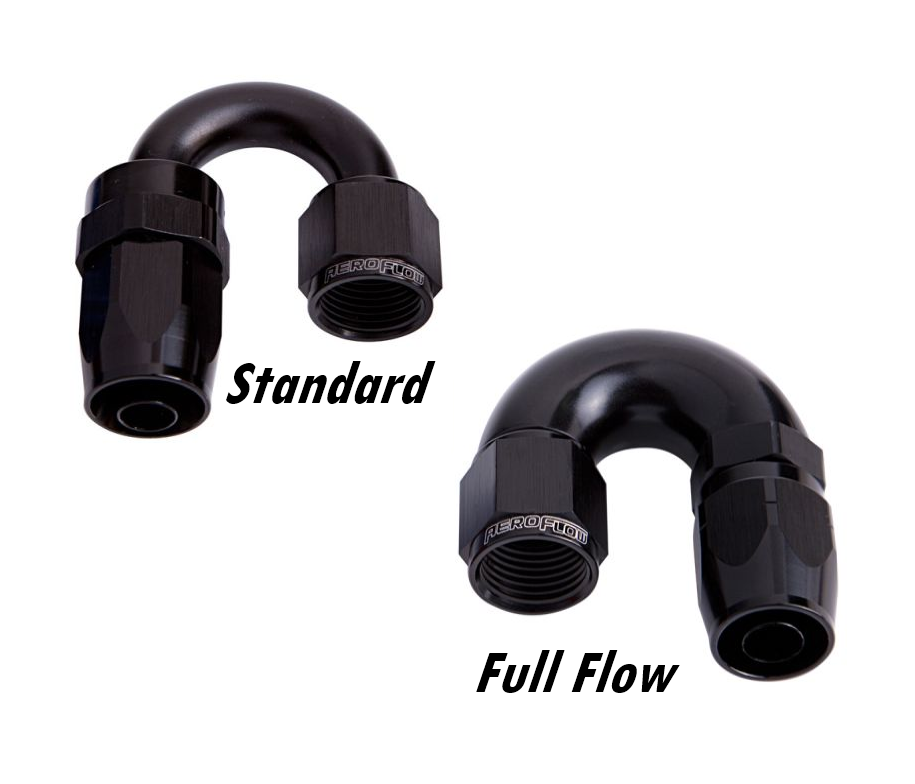

See The Full Flow Difference

Real AutoPlumb customers.

Real installs.

Zero restrictions.

How to Convert Your Cooling System to AN

STEP 1:

MEASURE YOUR RADIATOR / PUMP'S O.D.

Use calipers or a micrometer

Measure BEHIND the raised bead

NOTE: If your size is not listed on our website, a radiator water neck can be reduced in size approximately .040" and most water pumps can be reduced in size .050" or more. A file and emery cloth works well to reduce the size, but the method is up to you. Reduce it between the bead and radiator/pump. Adapters can also be installed on water necks that are up to .015" under the listed size.

STEP 2:

DOWNLOAD AND PRINT THE ADAPTER TEMPLATES

Find the adapter template for your measurement here

Transfer the templates to poster board for a stiffer template.

DO NOT use the templates to determine the O.D size to order.

STEP 3:

DOWNLOAD AND PRINT THE THERMOSTAT HOUSING TEMPLATES

Find the thermostat housing template for your brand here

Print a straight, 45°, or 90° depending on which is best for your application.

NOTE: Any angle hose end can be connected directly to a straight thermostat housing if that better suits your application. AutoPlumb AN Adapters can be used on your stock thermostat housing if we do not have a housing for your brand.

STEP 4:

DOWNLOAD AND PRINT THE HOSE END TEMPLATES

Find the hose end templates here

Start by printing which angles you think will work, then proceed to Step 5.

STEP 5:

DETERMINE YOUR HOSE END ANGLES

Mix and match the various angles until you get the ends to align.

Take your time on this step, it is crucial for assembly.

While the hose does bend (refer to the hose radius template), do not rely on the hose to make a bend for you.

STEP 6:

MEASURE YOUR HOSE LENGTH

Measure the distance between the hose end templates.

This measurement is an estimation, always give yourself extra hose in case of errors or if a bend is needed.

Taping the templates and/or having assistance makes this step easier.
