SBC/BBC Swivel Thermostat Housings

Name: SBC/BBC Swivel Thermostat Housings
Brand: AutoPlumb
SKU: AP100-16S
Price: 65.95 USD
Availability: InStock

SBC/BBC Swivel Thermostat Housings

$65.95

AP100-16S

AutoPlumb Small Block/Big Block Chevy Straight Thermostat Housings are fitted with a male straight AN fitting. It is designed to accept direct attachment of any angle of our hose ends and swivel 360°

AutoPlumb Small Block/Big Block Chevy 45° and 90° Thermostat Housings swivel 360° and lock into place with an ORB jam nut.

Use with or without a thermostat.

Features:

Swivels 360°
Made from 6061 billet aluminum
O-ring seal, no gasket necessary
O-ring and hardware included

Size

-16AN

-20AN

Angle

Straight

45°

90°

Color

Silver

Black

Quantity

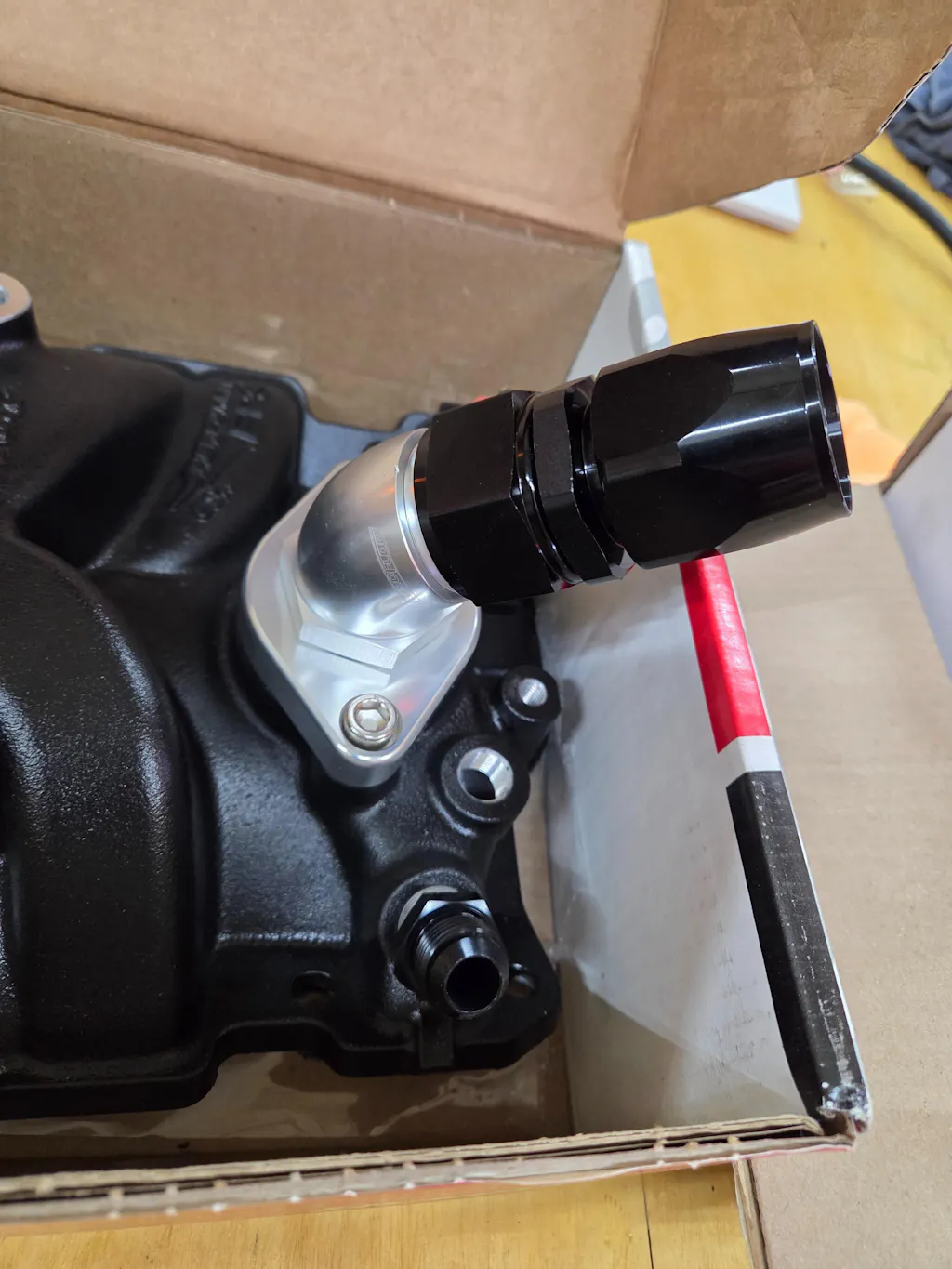

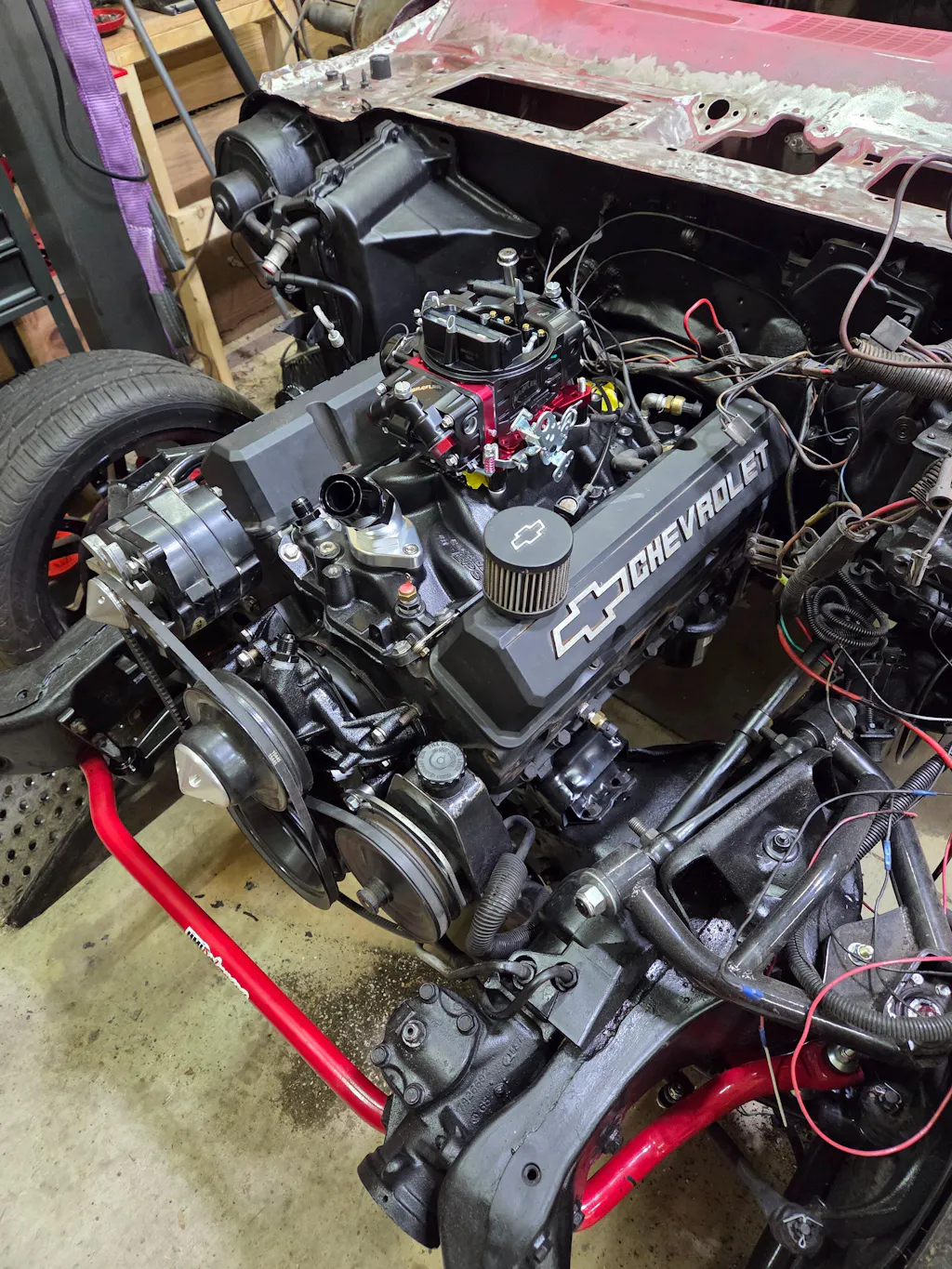

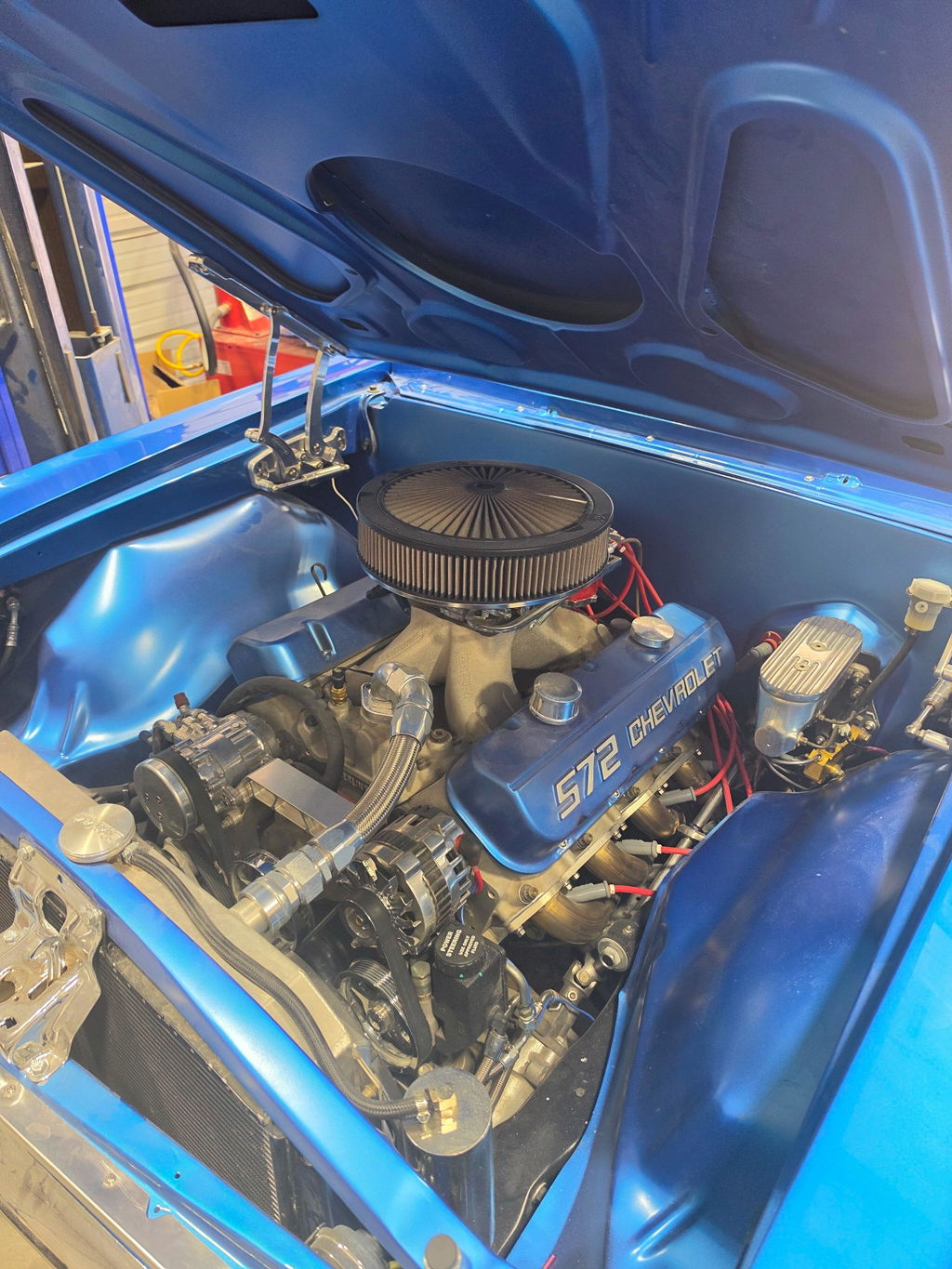

Real-World Results From Our Customers

No studio lighting. Just real installs from real AutoPlumb customers.

How to Convert Your Cooling System to AN

STEP 1:

MEASURE YOUR RADIATOR / PUMP'S O.D.

Use calipers or a micrometer

Measure BEHIND the raised bead

NOTE: If your size is not listed on our website, a radiator water neck can be reduced in size approximately .040" and most water pumps can be reduced in size .050" or more. A file and emery cloth works well to reduce the size, but the method is up to you. Reduce it between the bead and radiator/pump. Adapters can also be installed on water necks that are up to .015" under the listed size.

STEP 2:

DOWNLOAD AND PRINT THE ADAPTER TEMPLATES

Find the adapter template for your measurement here

Transfer the templates to poster board for a stiffer template.

DO NOT use the templates to determine the O.D size to order.

STEP 3:

DOWNLOAD AND PRINT THE THERMOSTAT HOUSING TEMPLATES

Find the thermostat housing template for your brand here

Print a straight, 45°, or 90° depending on which is best for your application.

NOTE: Any angle hose end can be connected directly to a straight thermostat housing if that better suits your application. AutoPlumb AN Adapters can be used on your stock thermostat housing if we do not have a housing for your brand.

STEP 4:

DOWNLOAD AND PRINT THE HOSE END TEMPLATES

Find the hose end templates here

Start by printing which angles you think will work, then proceed to Step 5.

STEP 5:

DETERMINE YOUR HOSE END ANGLES

Mix and match the various angles until you get the ends to align.

Take your time on this step, it is crucial for assembly.

While the hose does bend (refer to the hose radius template), do not rely on the hose to make a bend for you.

STEP 6:

MEASURE YOUR HOSE LENGTH

Measure the distance between the hose end templates.

This measurement is an estimation, always give yourself extra hose in case of errors or if a bend is needed.

Taping the templates and/or having assistance makes this step easier.

STEP 1:

MEASURE YOUR RADIATOR / PUMP'S O.D.

Use calipers or a micrometer

Measure BEHIND the raised bead

STEP 2:

DOWNLOAD AND PRINT THE ADAPTER TEMPLATES

Find the adapter template for your measurement here

Transfer the templates to poster board for a stiffer template.

DO NOT use the templates to determine the O.D size to order.

STEP 3:

DOWNLOAD AND PRINT THE THERMOSTAT HOUSING TEMPLATES

Find the thermostat housing template for your brand here

Print a straight, 45°, or 90° depending on which is best for your application.

NOTE: Any angle hose end can be connected directly to a straight thermostat housing if that better suits your application. AutoPlumb AN Water Neck Adapters can be used on your stock thermostat housing if we do not have a housing for your brand.

STEP 4:

DOWNLOAD AND PRINT THE HOSE END TEMPLATES

Find the hose end templates here

Start by printing which angles you think will work, then proceed to Step 5.

STEP 5:

DETERMINE YOUR HOSE END ANGLES

Mix and match the various angles until you get the ends to align.

Take your time on this step, it is crucial for assembly.

While the hose does bend (refer to the hose radius template), do not rely on the hose to make a bend for you.

STEP 6:

MEASURE YOUR HOSE LENGTH

Measure the distance between the hose end templates.

This measurement is an estimation, always give yourself extra hose in case of errors or if a bend is needed.

Taping the templates and/or having assistance makes this step easier.

-20 upper radiator hose

Very happy with the parts. Have not fired the engine yet. I'm sure it'll be great!

Thermostat housing, hose ends, Radiator ends,

Everything I needed to make complicated hose connections from custom radiator to engine on my 2004 Jeep Grand Cherokee 4.7HO. Excellent tech help and quality products!

Thank you for your positive review! We are glad to hear that our -AN conversion system was able to provide everything you needed for your custom radiator setup on your Jeep Grand Cherokee. We strive to provide excellent tech support and top-quality products. We appreciate your business and hope to assist you again in the future.

All the best,
Joe

Thermostat housing

As always, perfect. You can try the rest, but I’ll stay with the best. Thanks for everything.

Jim, thank you for your kind words and continued support! It's always a pleasure working with you and I look forward to helping any way I can on future projects.

All the best,
Joe

Radiator hose and autoplumb ends

great products quick shipping and awesome quality and finish

Hi there! Thank you so much for taking the time to leave us a review. We're thrilled to hear that you are enjoying our SBC/BBC Swivel Thermostat Housings and that they were a perfect fit for your radiator hose and autoplumb ends. Our team works hard to provide top-quality products and fast shipping, so we're happy to know we met your expectations. Thanks again for choosing our product and for your kind words.

Happy driving!
Joe

Looks great

Have not installed it yet but looks great and feels like really good quality.

Hi there, thank you for taking the time to leave us a review! We are glad to hear that our SBC/BBC Swivel Thermostat Housing looks great and you are happy with the quality. We hope you had a smooth installation process and please don't hesitate to reach out if you need any assistance.

Thank you for choosing our product!
Joe
