SBF Windsor Swivel Thermostat Housings

Name: SBF Windsor Swivel Thermostat Housings
Brand: AutoPlumb
SKU: AP102-16BLK
Price: 65.95 USD
Availability: InStock

SBF Windsor Swivel Thermostat Housings

$65.95

AP102-16BLK

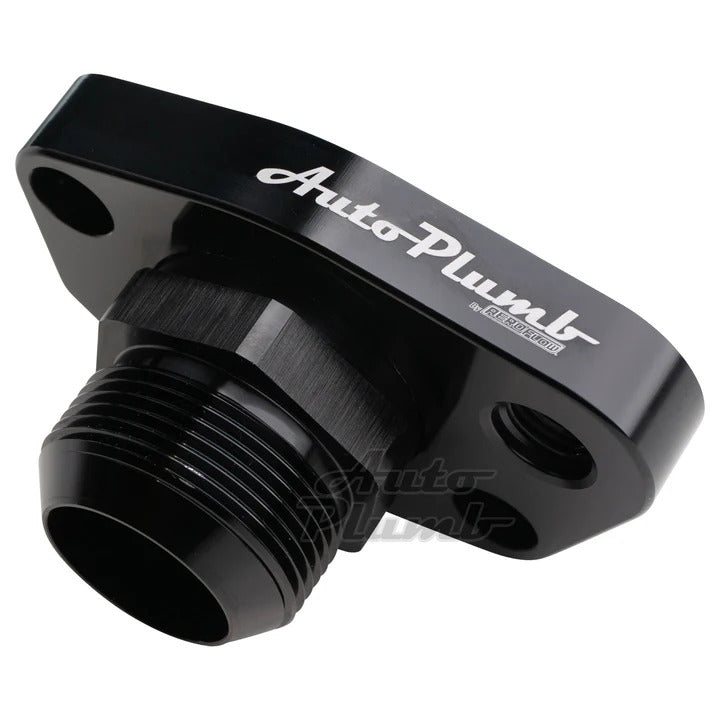

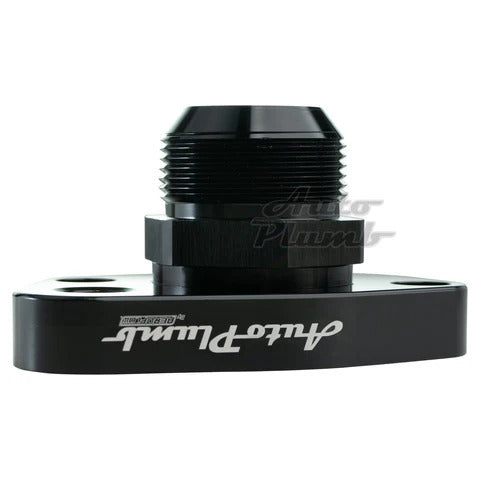

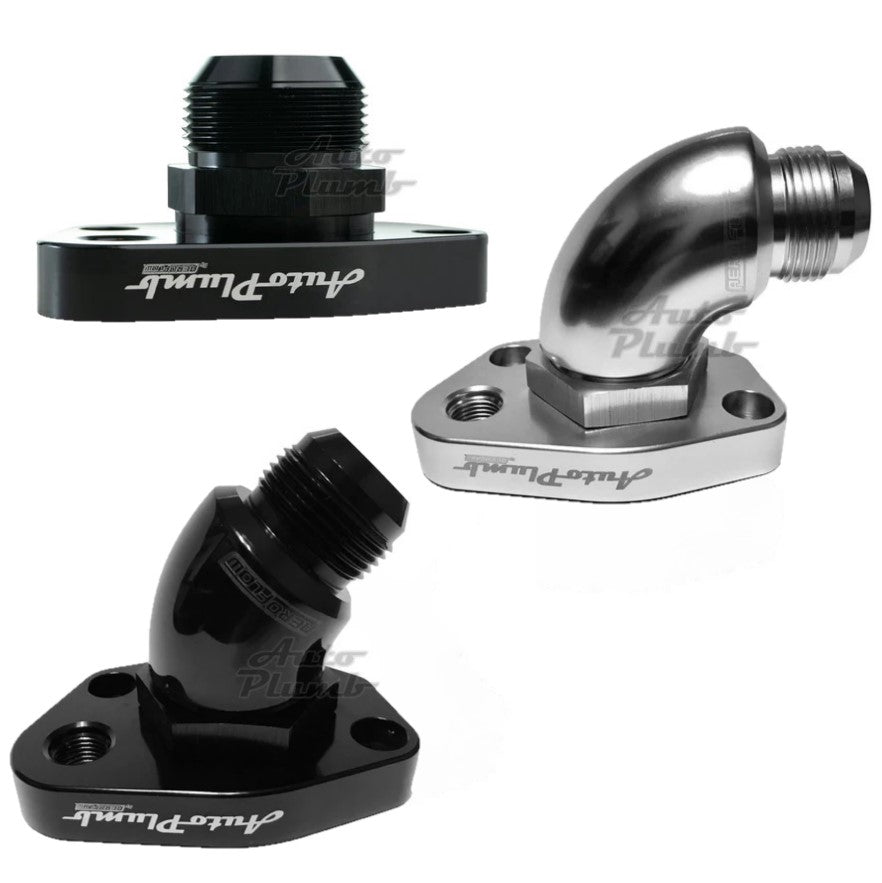

AutoPlumb Small Block Ford Windsor Straight Thermostat Housings are fitted with a male straight AN fitting. It is designed to accept direct attachment from any angle of our hose ends and swivel 360°

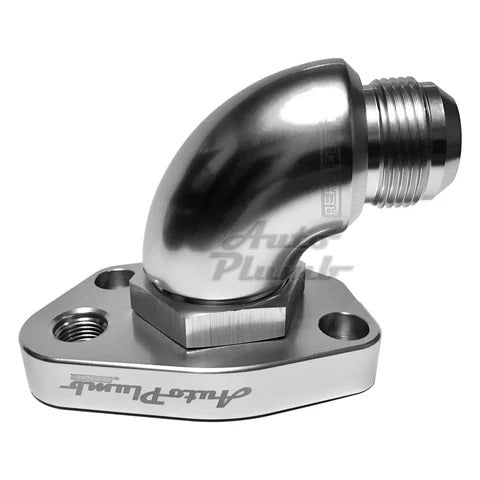

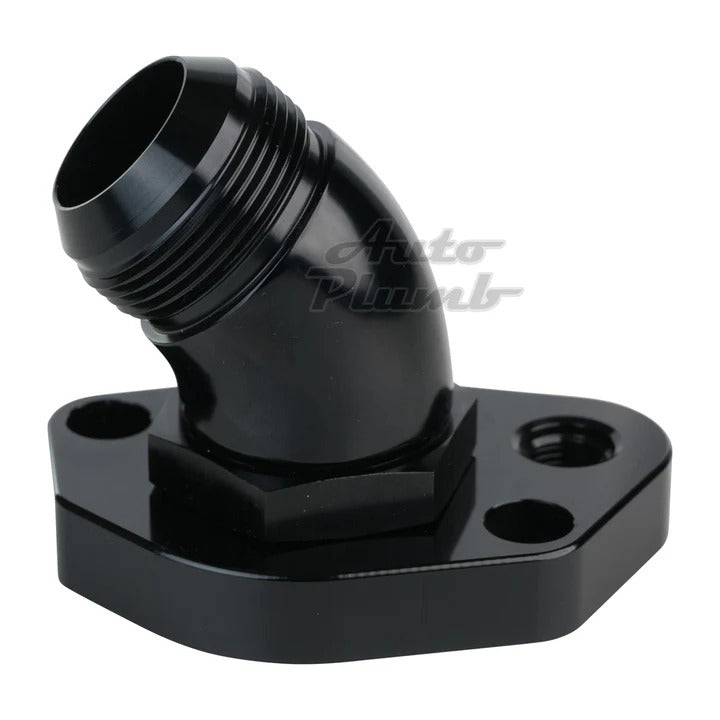

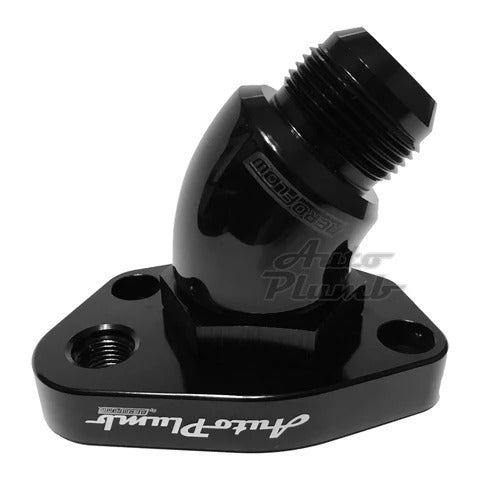

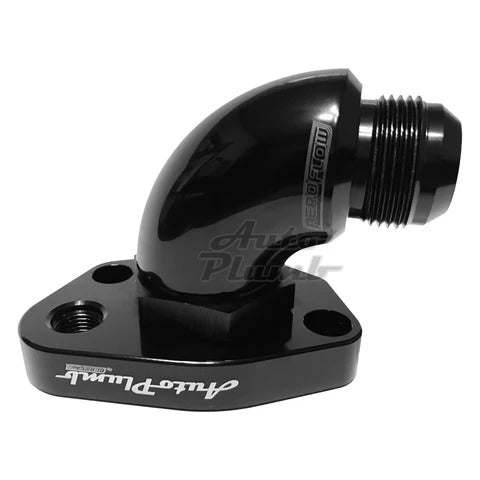

AutoPlumb Small Block Ford Windsor 45° and 90° Thermostat Housings swivel 360° and lock into place with an ORB jam nut.

Use with or without a thermostat

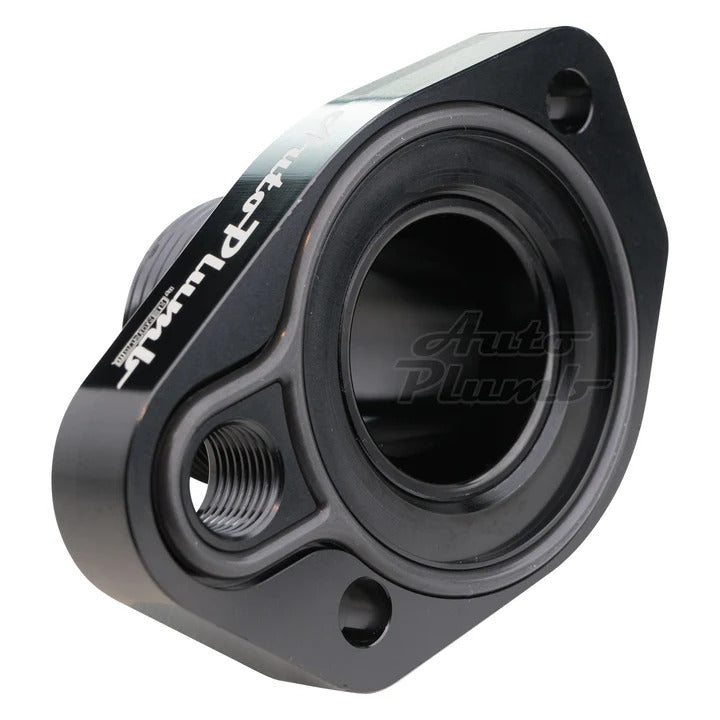

STOCK GASKET REQUIRED
The SBF Windsor housing bypass port is supplied with a 5/8" barb fitting. If you wish to block it off, or use AN, Click here to order:

Features:

Swivels 360°
Made from 6061 billet aluminum
Stock gasket required
Hardware included

Size

-16AN

-20AN

Angle

Straight

45°

90°

Color

Black

Silver

Quantity

Real-World Results From Our Customers

No studio lighting. Just real installs from real AutoPlumb customers.

How to Convert Your Cooling System to AN

STEP 1:

MEASURE YOUR RADIATOR / PUMP'S O.D.

Use calipers or a micrometer

Measure BEHIND the raised bead

NOTE: If your size is not listed on our website, a radiator water neck can be reduced in size approximately .040" and most water pumps can be reduced in size .050" or more. A file and emery cloth works well to reduce the size, but the method is up to you. Reduce it between the bead and radiator/pump. Adapters can also be installed on water necks that are up to .015" under the listed size.

STEP 2:

DOWNLOAD AND PRINT THE ADAPTER TEMPLATES

Find the adapter template for your measurement here

Transfer the templates to poster board for a stiffer template.

DO NOT use the templates to determine the O.D size to order.

STEP 3:

DOWNLOAD AND PRINT THE THERMOSTAT HOUSING TEMPLATES

Find the thermostat housing template for your brand here

Print a straight, 45°, or 90° depending on which is best for your application.

NOTE: Any angle hose end can be connected directly to a straight thermostat housing if that better suits your application. AutoPlumb AN Adapters can be used on your stock thermostat housing if we do not have a housing for your brand.

STEP 4:

DOWNLOAD AND PRINT THE HOSE END TEMPLATES

Find the hose end templates here

Start by printing which angles you think will work, then proceed to Step 5.

STEP 5:

DETERMINE YOUR HOSE END ANGLES

Mix and match the various angles until you get the ends to align.

Take your time on this step, it is crucial for assembly.

While the hose does bend (refer to the hose radius template), do not rely on the hose to make a bend for you.

STEP 6:

MEASURE YOUR HOSE LENGTH

Measure the distance between the hose end templates.

This measurement is an estimation, always give yourself extra hose in case of errors or if a bend is needed.

Taping the templates and/or having assistance makes this step easier.

STEP 1:

MEASURE YOUR RADIATOR / PUMP'S O.D.

Use calipers or a micrometer

Measure BEHIND the raised bead

STEP 2:

DOWNLOAD AND PRINT THE ADAPTER TEMPLATES

Find the adapter template for your measurement here

Transfer the templates to poster board for a stiffer template.

DO NOT use the templates to determine the O.D size to order.

STEP 3:

DOWNLOAD AND PRINT THE THERMOSTAT HOUSING TEMPLATES

Find the thermostat housing template for your brand here

Print a straight, 45°, or 90° depending on which is best for your application.

NOTE: Any angle hose end can be connected directly to a straight thermostat housing if that better suits your application. AutoPlumb AN Water Neck Adapters can be used on your stock thermostat housing if we do not have a housing for your brand.

STEP 4:

DOWNLOAD AND PRINT THE HOSE END TEMPLATES

Find the hose end templates here

Start by printing which angles you think will work, then proceed to Step 5.

STEP 5:

DETERMINE YOUR HOSE END ANGLES

Mix and match the various angles until you get the ends to align.

Take your time on this step, it is crucial for assembly.

While the hose does bend (refer to the hose radius template), do not rely on the hose to make a bend for you.

STEP 6:

MEASURE YOUR HOSE LENGTH

Measure the distance between the hose end templates.

This measurement is an estimation, always give yourself extra hose in case of errors or if a bend is needed.

Taping the templates and/or having assistance makes this step easier.

Quality is good-missing o ring- thermostat didnt clear

Quality is good. well built. However did not come with the 16an o ring. but they sent me one pretty quick. also i had to use a dremel and clearence the housing to fit a parts store thermostat. it may have been ok for an aftermarket one. but i wanted to be able to replace with local availability easily.
