-16AN & -20AN Thermostat Housings

AN Thermostat Housings

Take your cooling system to the next level.

AutoPlumb AN Thermostat Housings are engineered for durability, flow, and reliability. Machined from T6-6061 billet aluminum and anodized to resist corrosion, these housings integrates seamlessly into any AN plumbing setup. Choose the AN size and angle that fits your setup and make your build stand out from the rest.

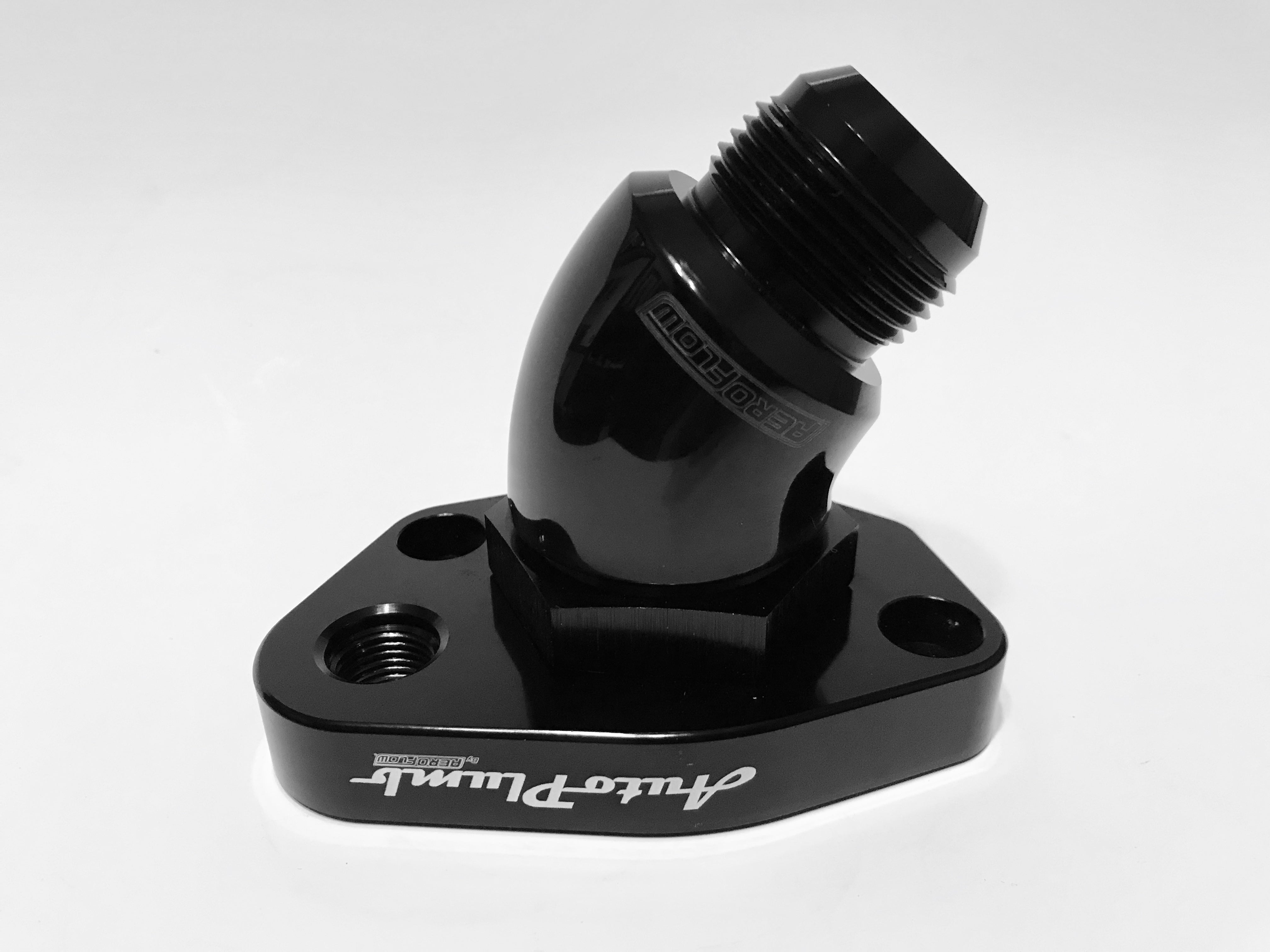

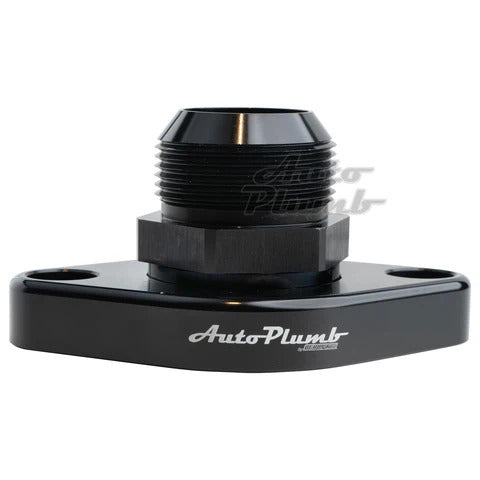

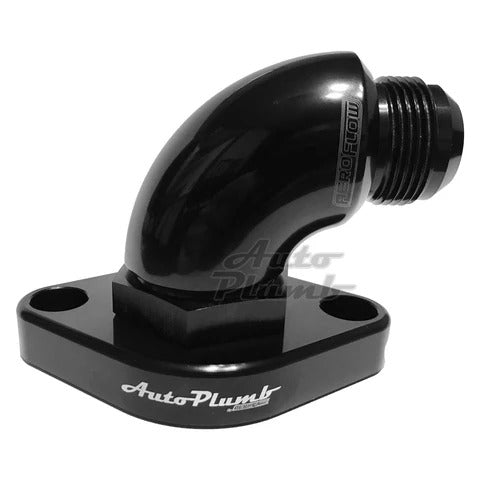

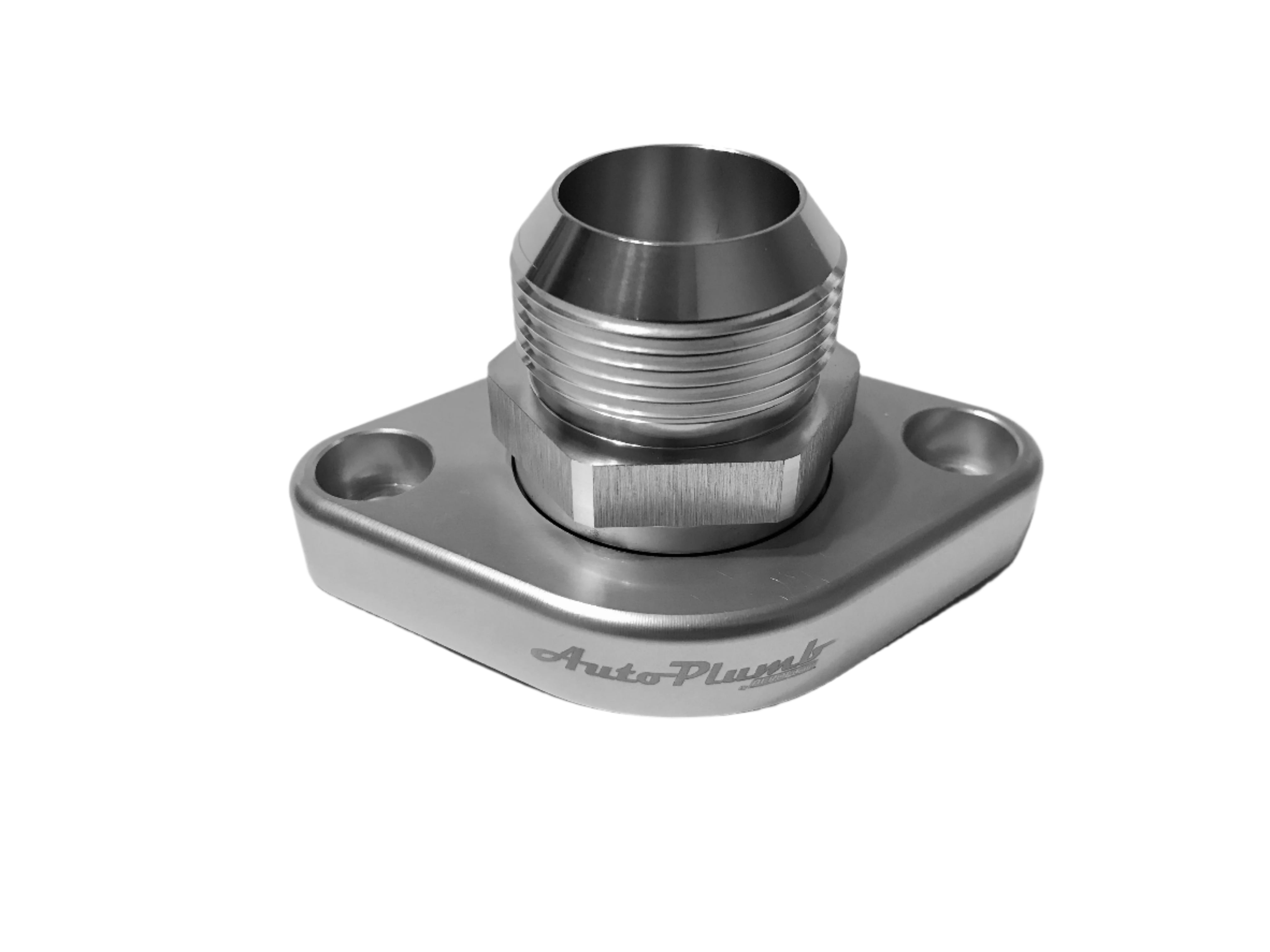

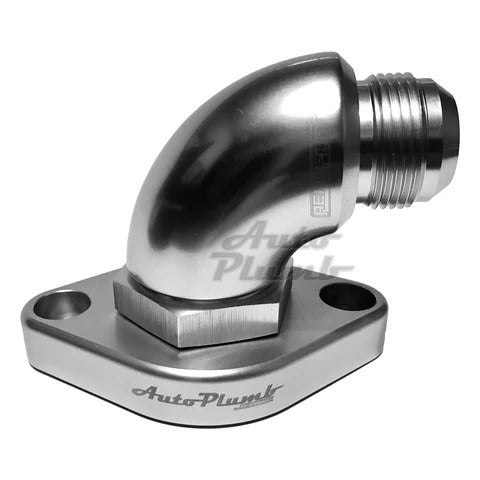

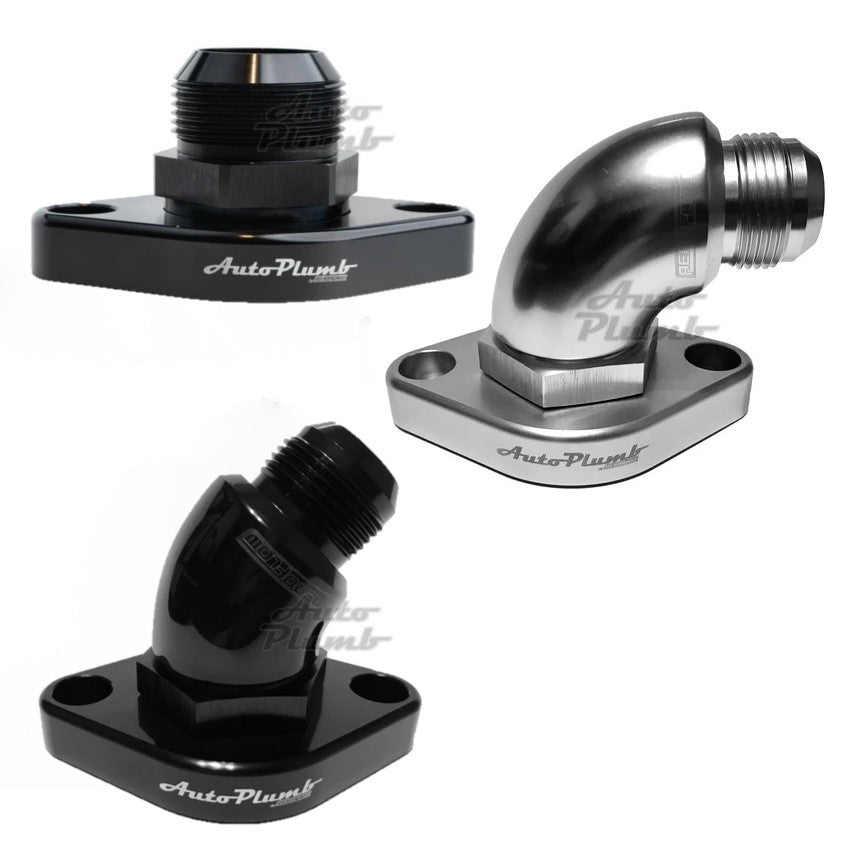

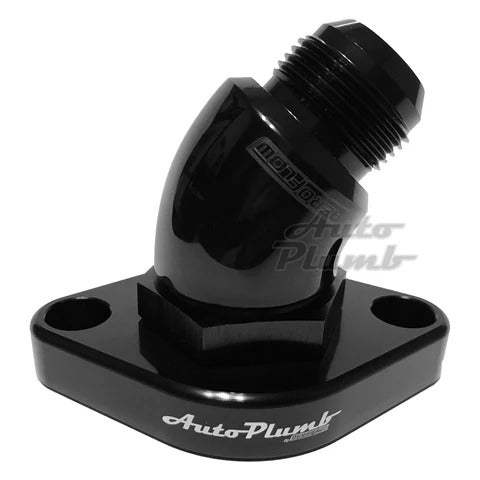

SBC/BBC Swivel Thermostat Housings

$65.95

View Product

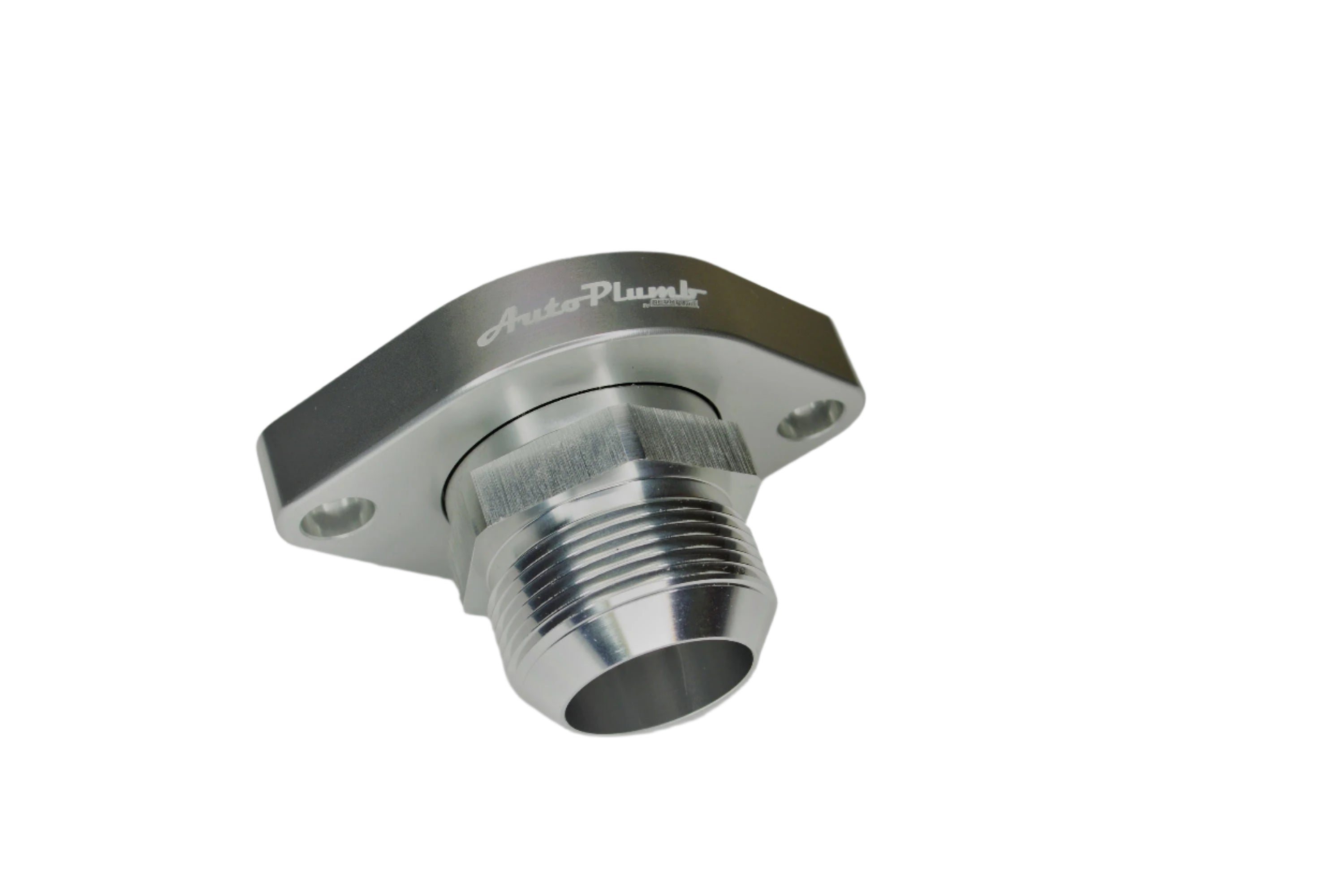

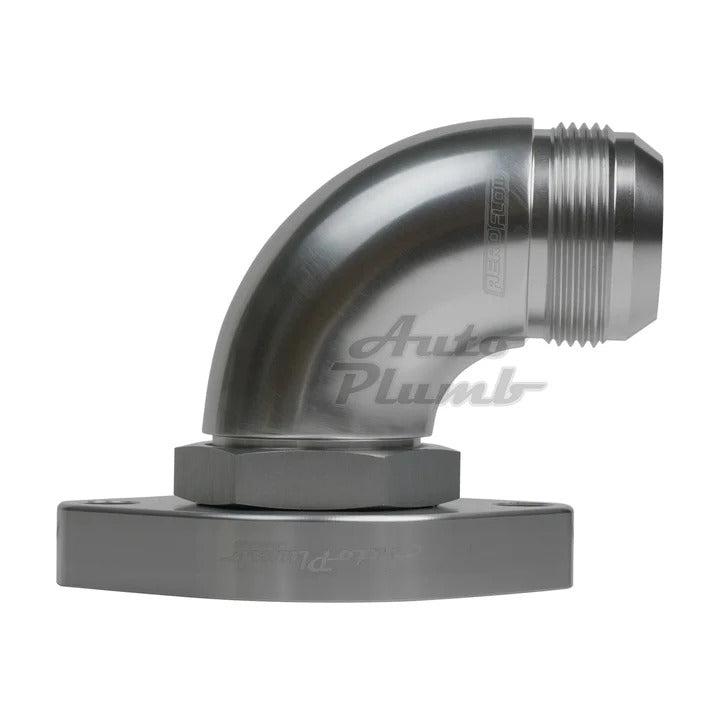

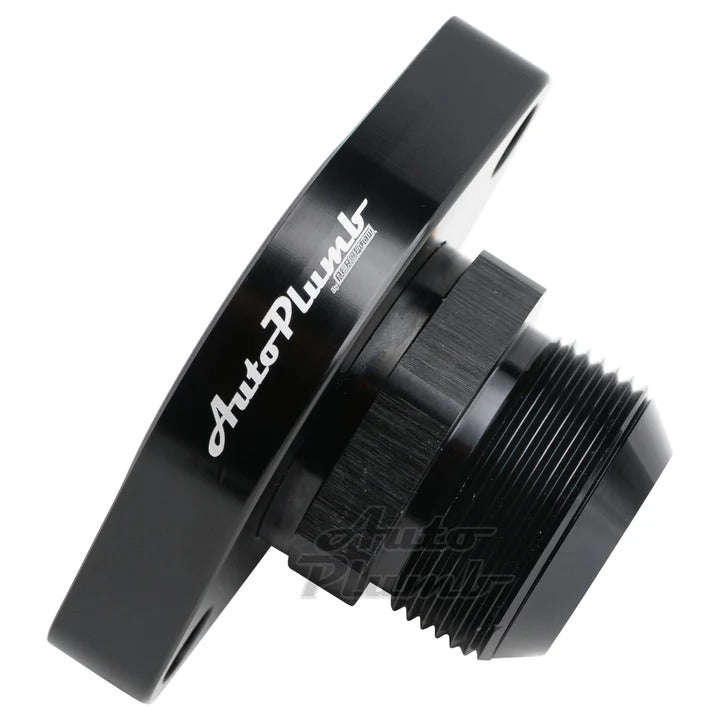

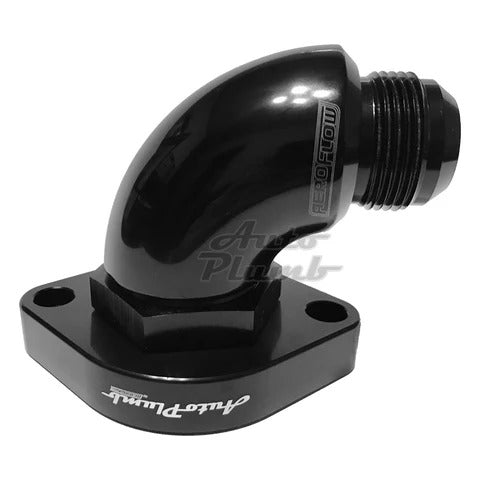

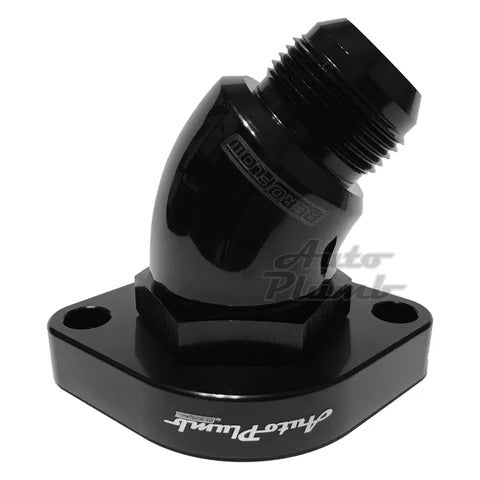

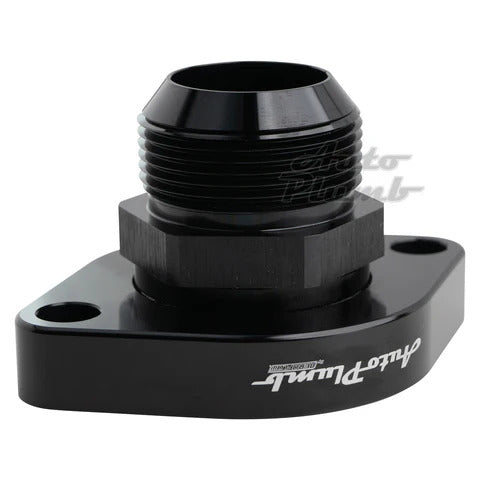

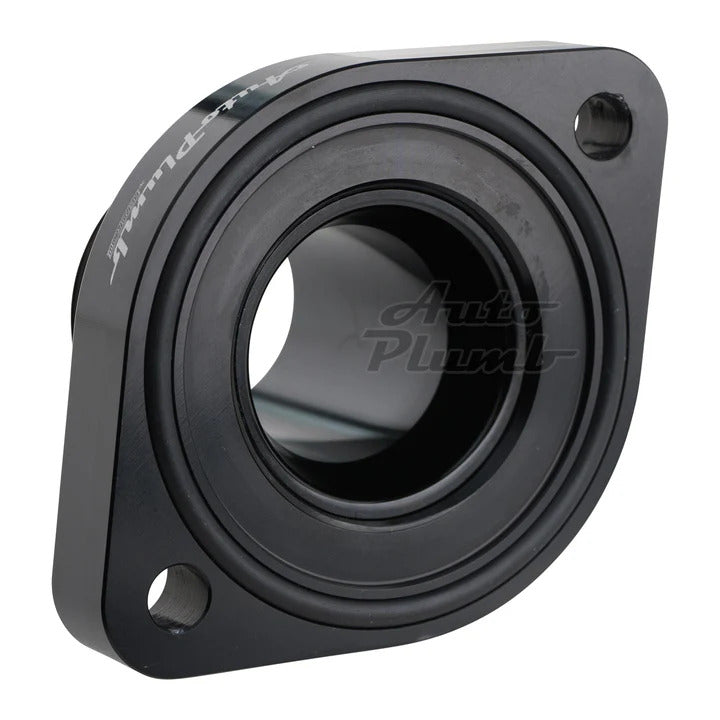

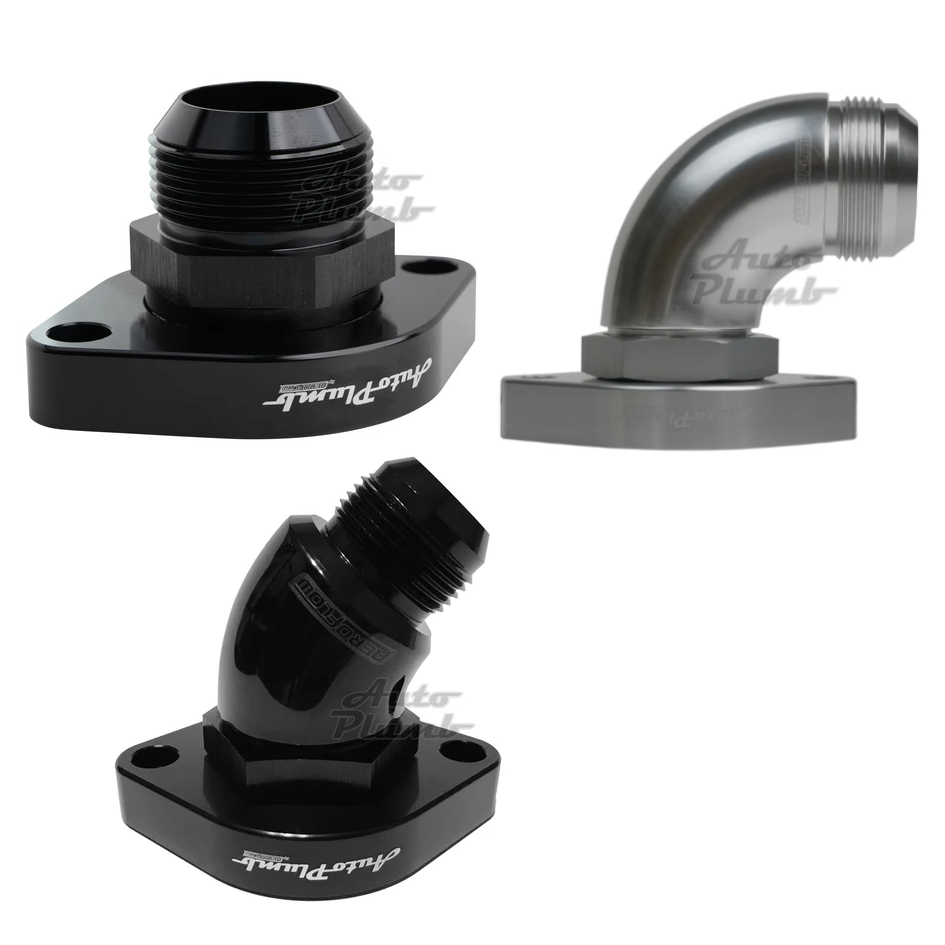

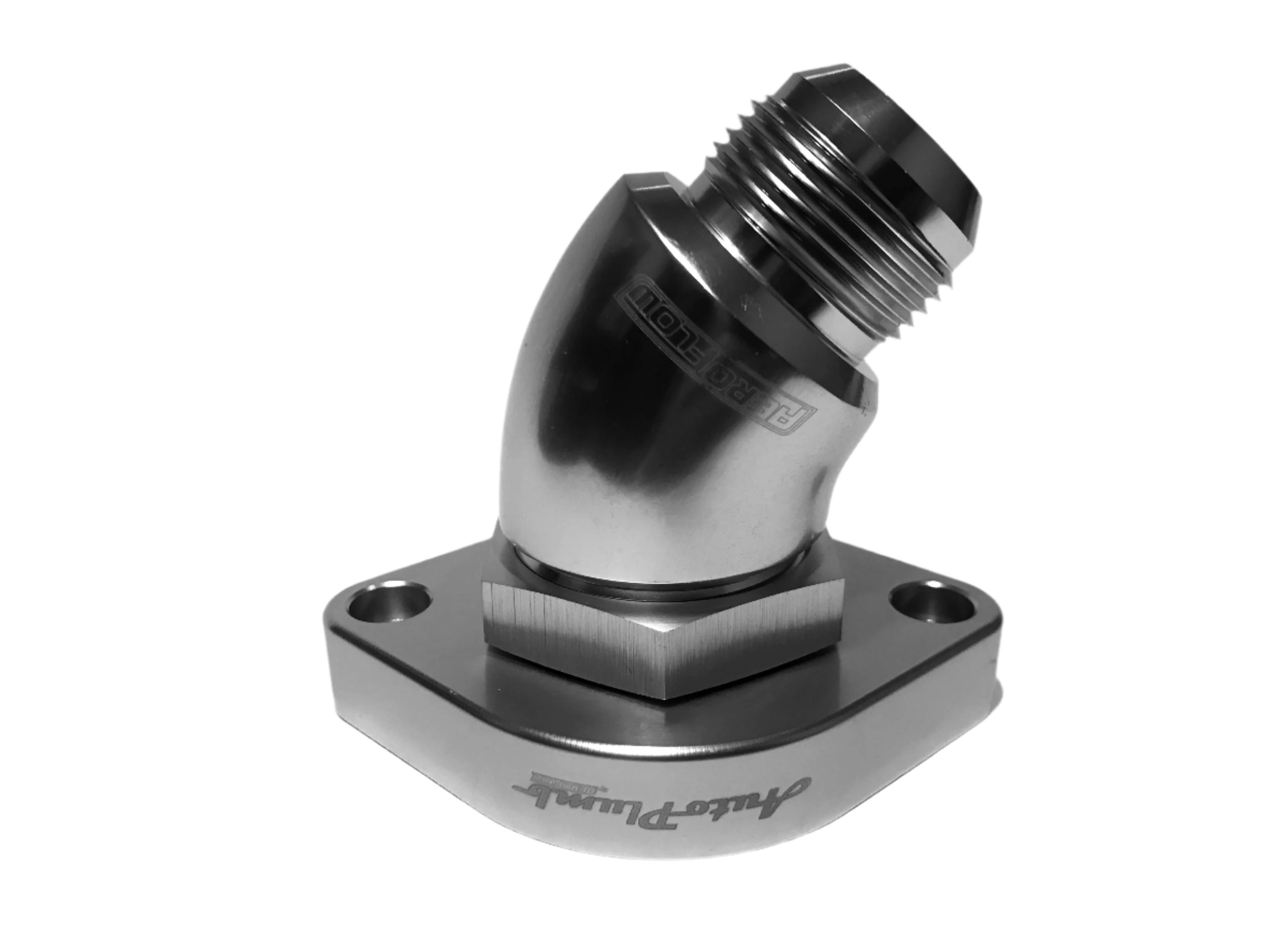

LS 1 & 2 Swivel Thermostat Housings

$65.95

View Product

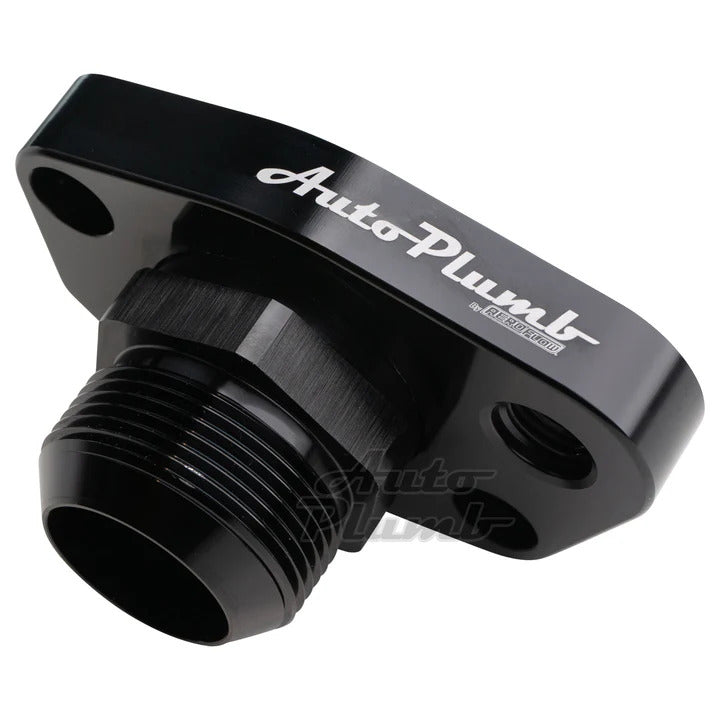

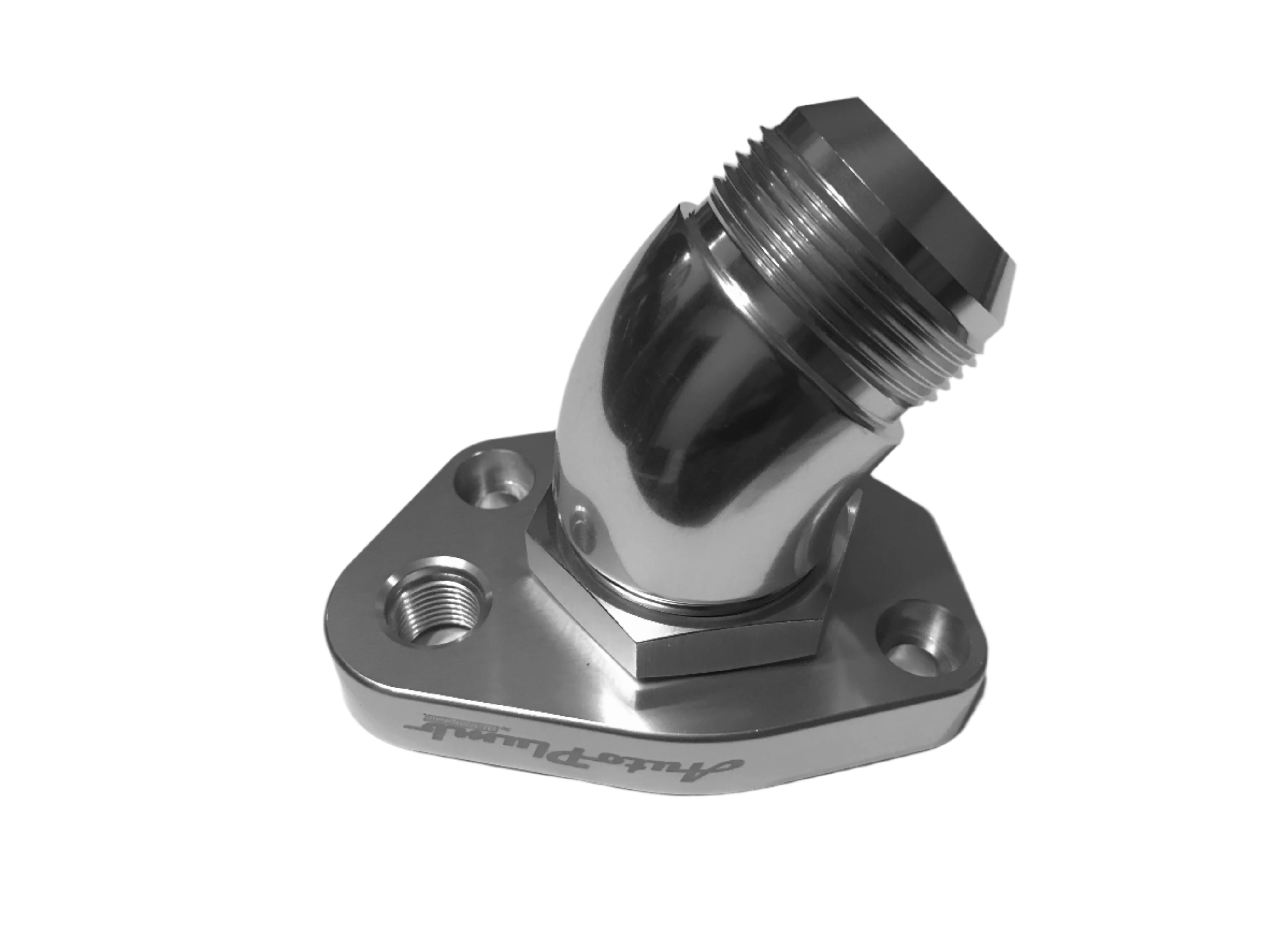

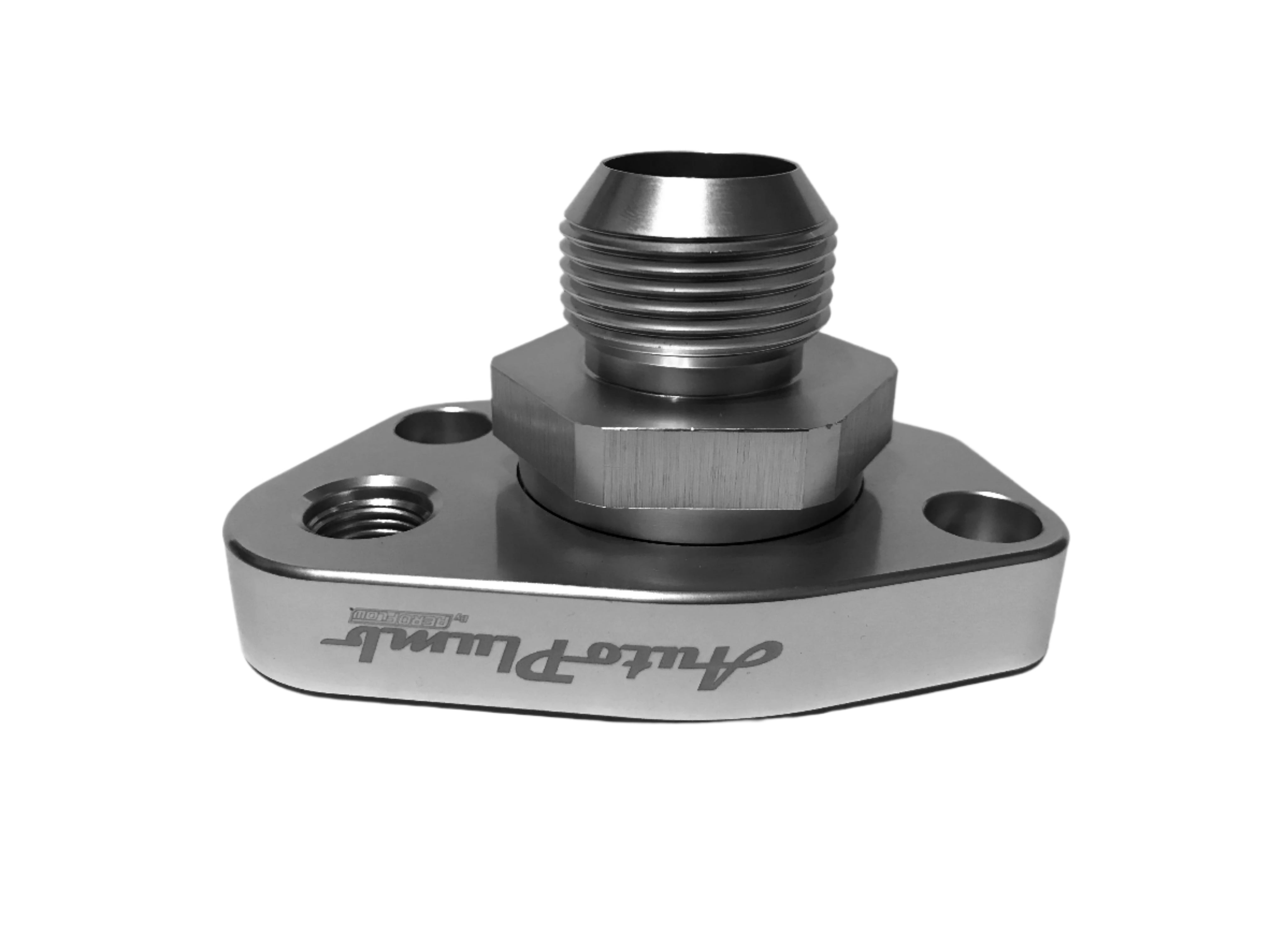

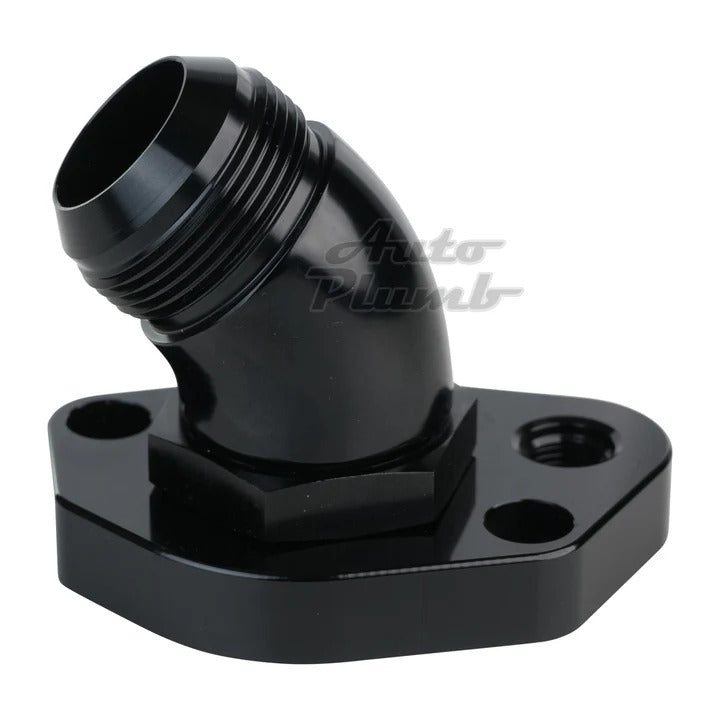

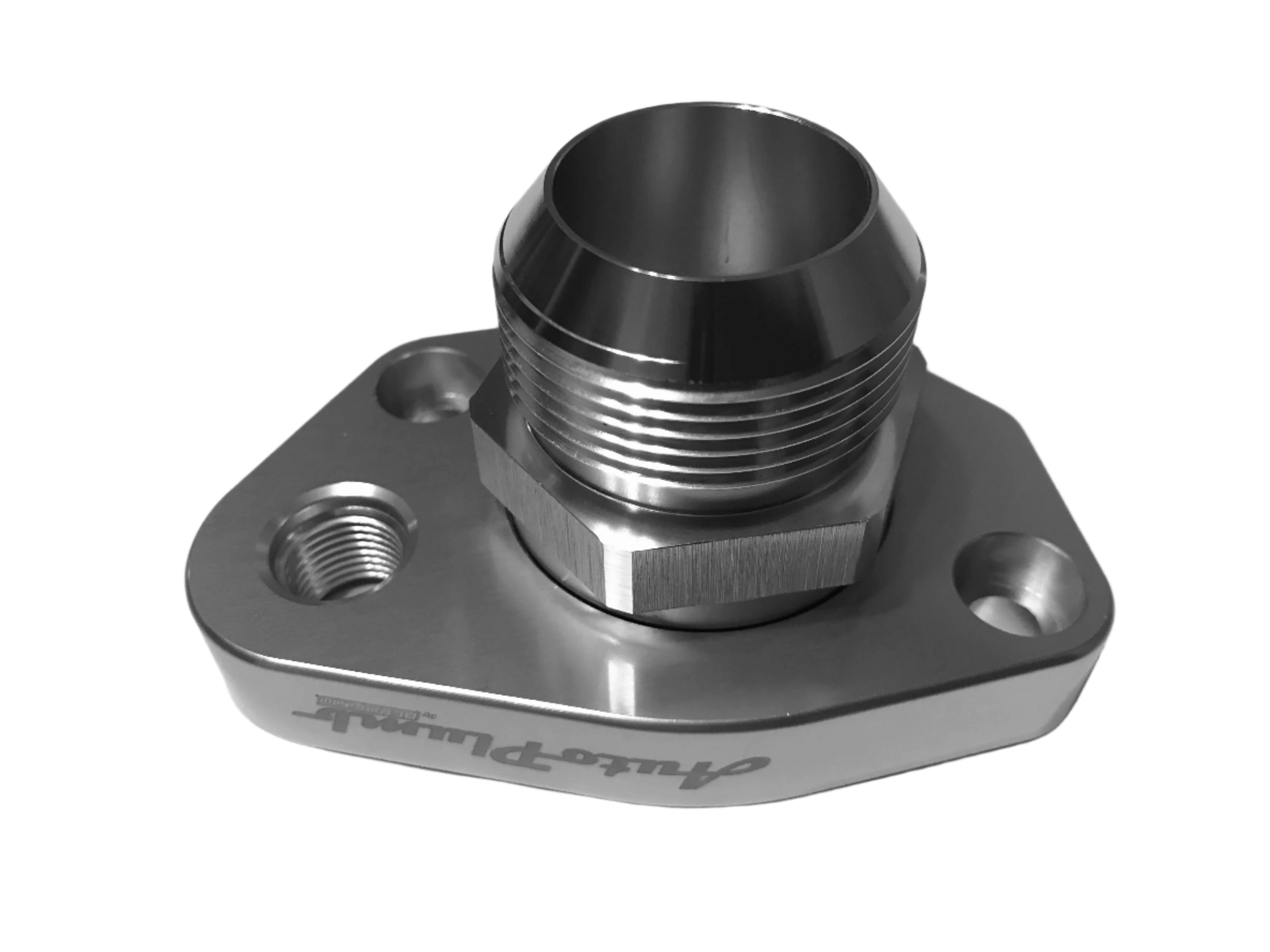

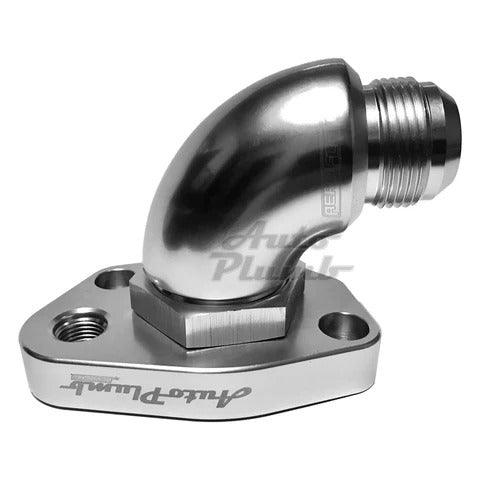

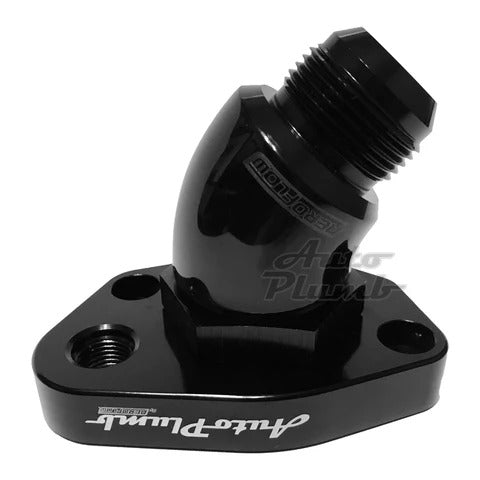

SBF Windsor Swivel Thermostat Housings

$65.95

View Product

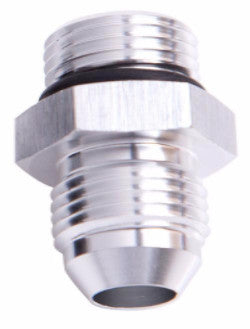

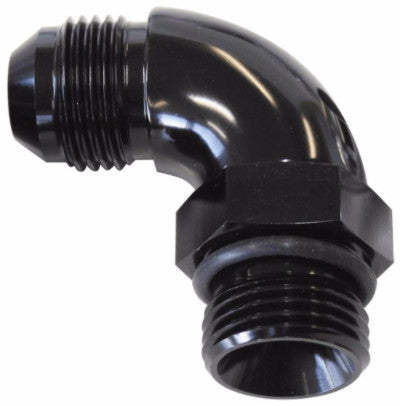

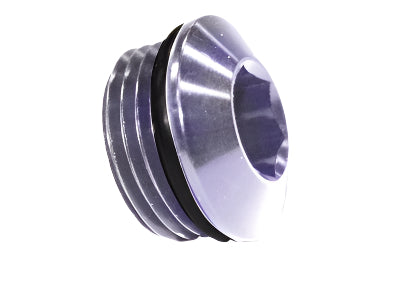

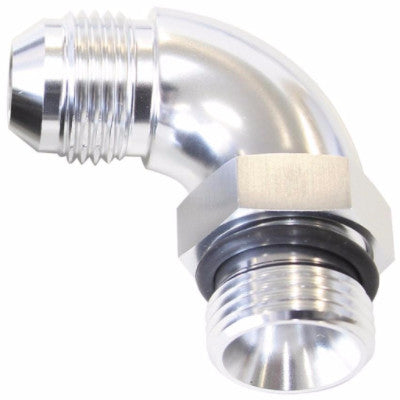

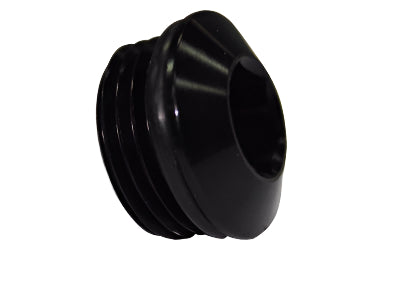

SBF / 260-289W Thermostat Housing Port Plugs and AN Fittings

SBF / 260-289W Thermostat Housing Port Plugs and AN Fittings

$5.94

View Product

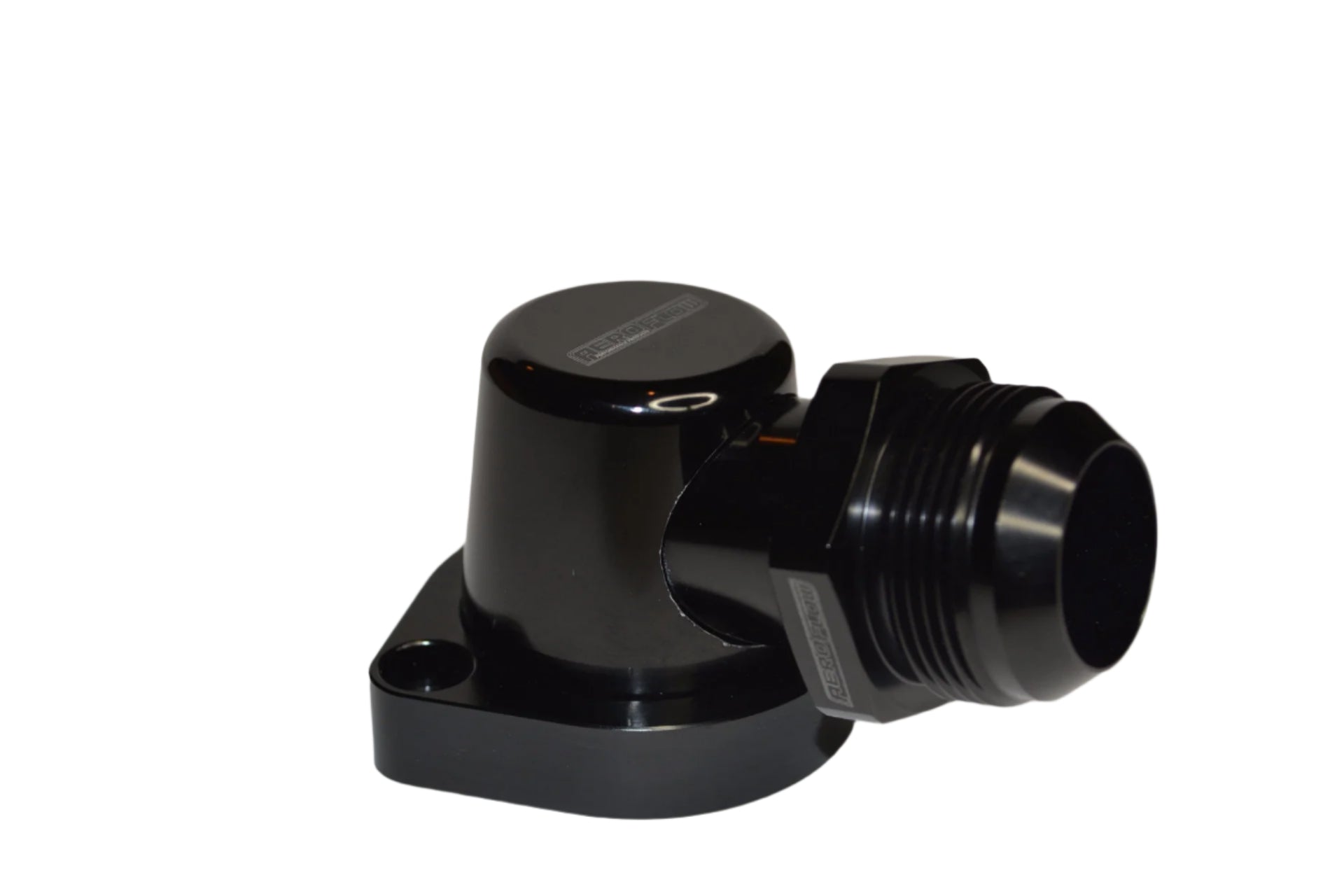

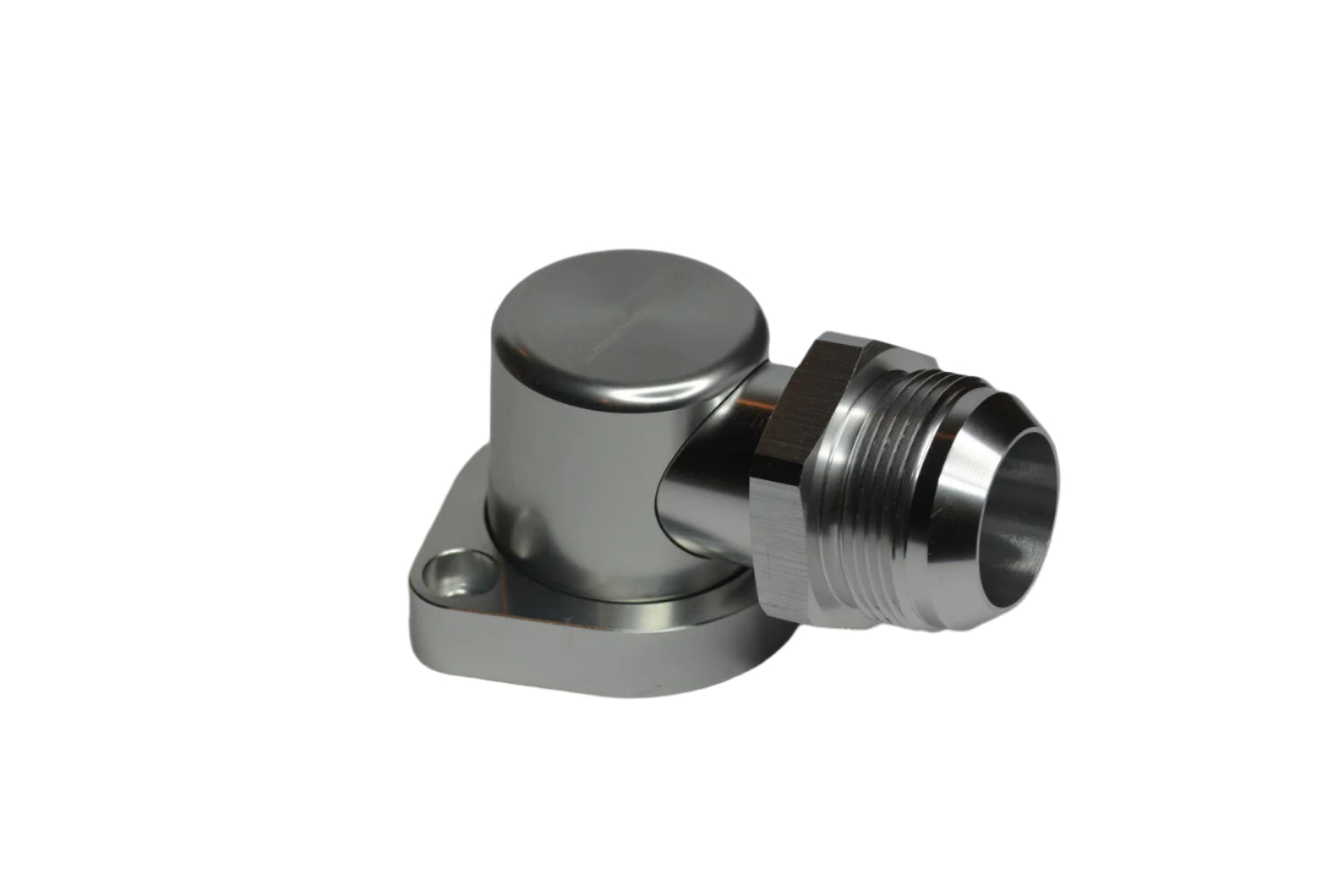

LS3 Swivel Thermostat Housings

$94.95

View Product

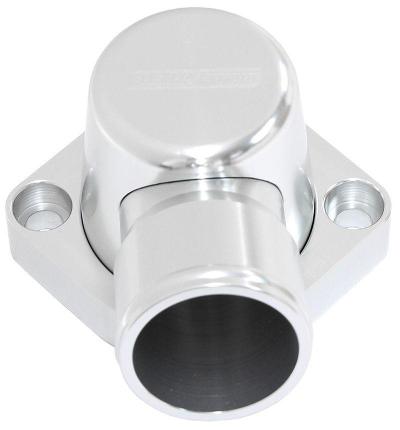

-16AN & -20AN , 1.5" Hose. BB Ford & SBF Cleveland Swivel Thermostat Housings

-16AN & -20AN , 1.5" Hose. BB Ford & SBF Cleveland Swivel Thermostat Housings

$94.95

View Product

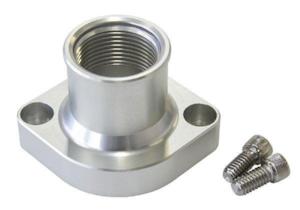

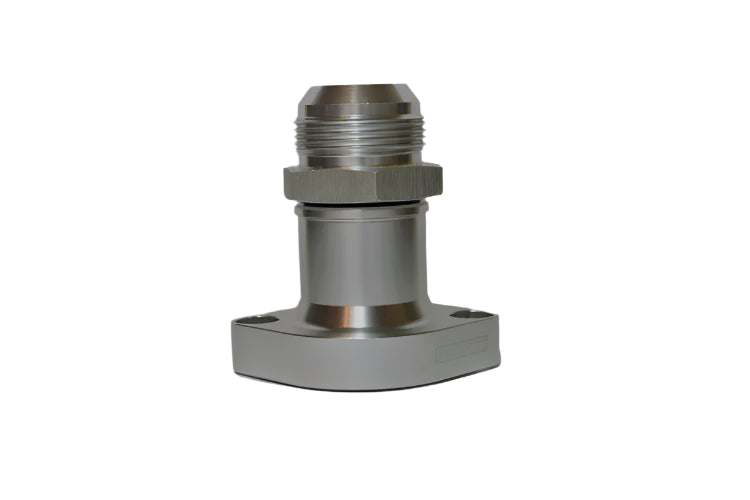

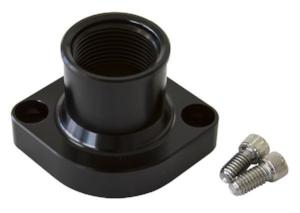

-16AN , -20AN , 1.5" Hose. Ford (Cleveland) Straight Thermostat Housing

-16AN , -20AN , 1.5" Hose. Ford (Cleveland) Straight Thermostat Housing

$77.94

View Product

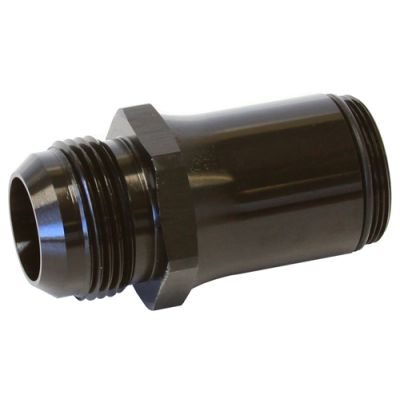

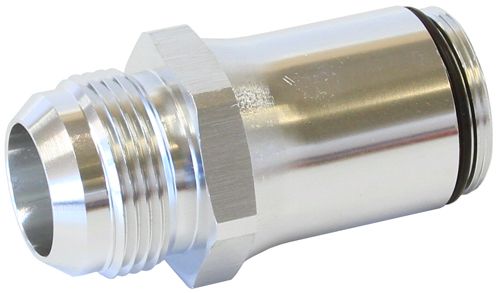

Thermostat Housing AN Adapter

$21.54

View Product

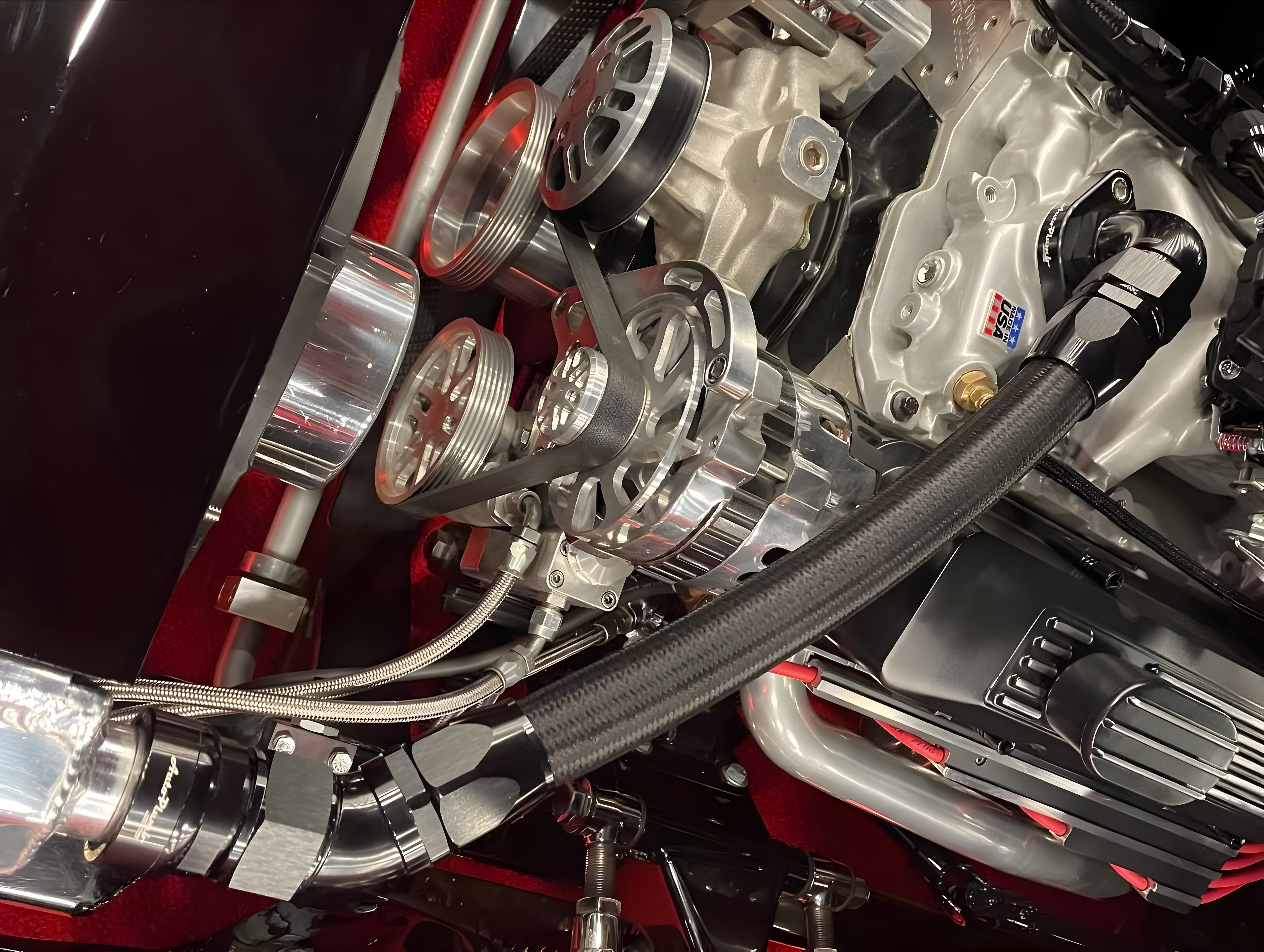

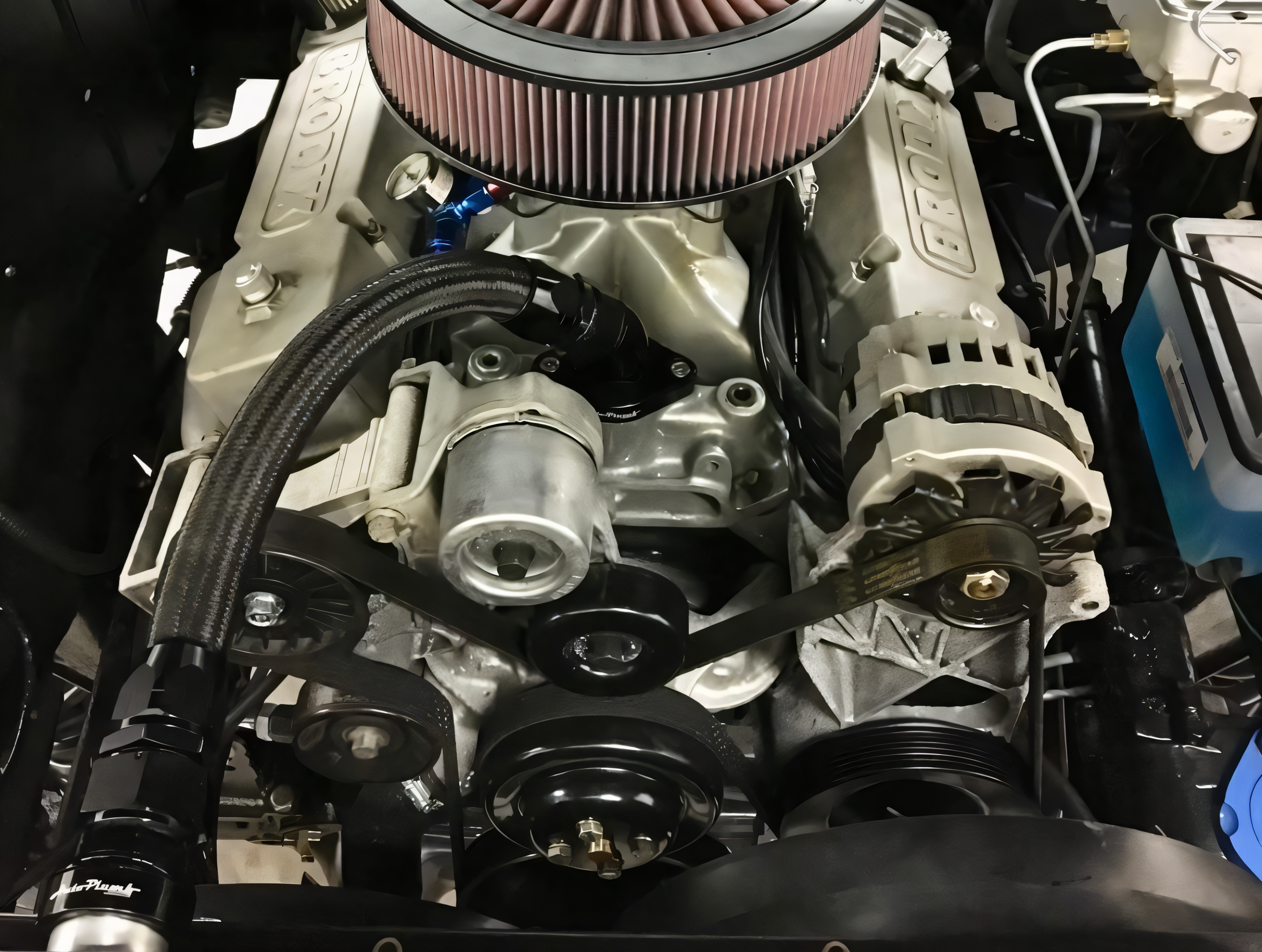

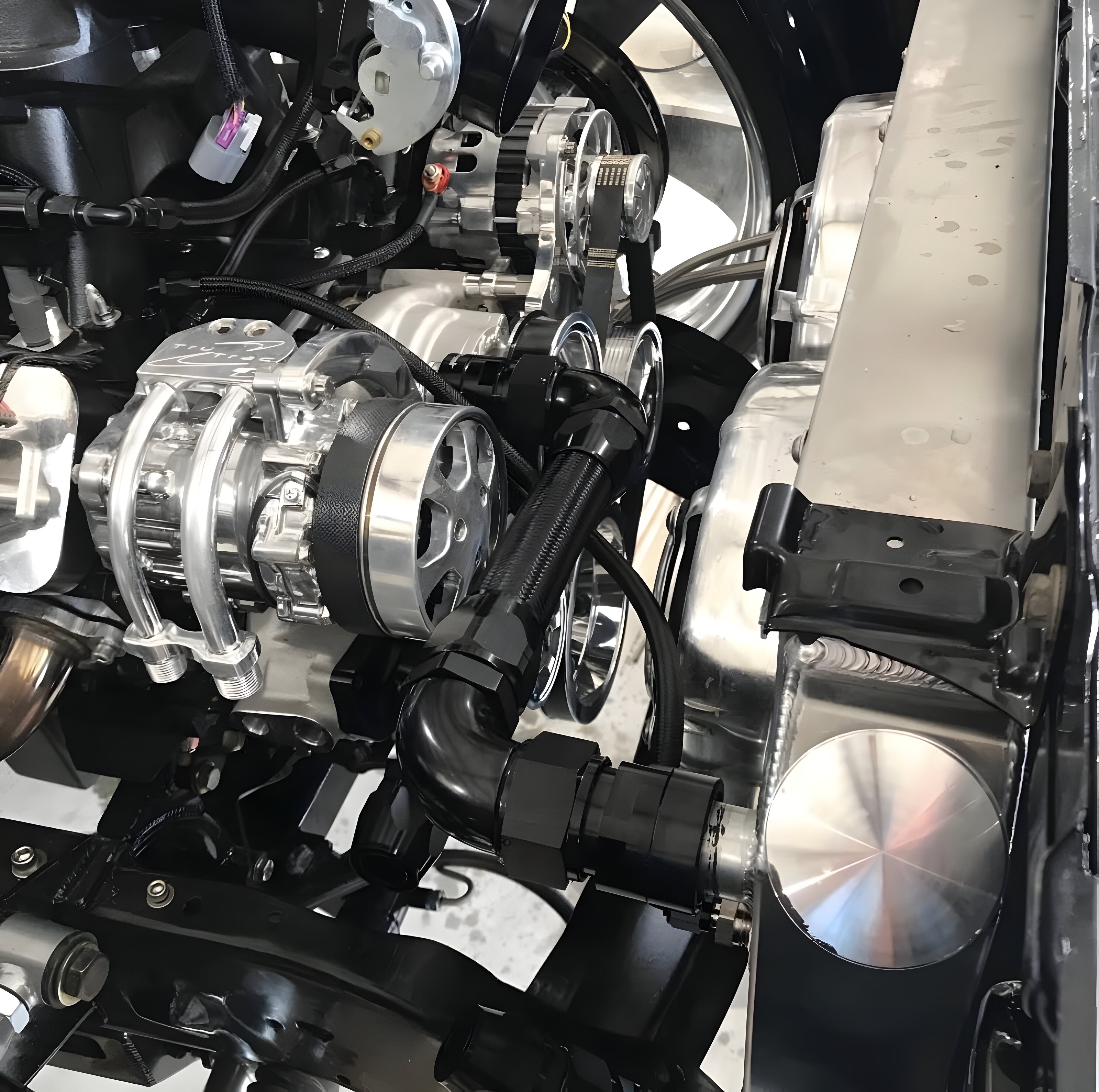

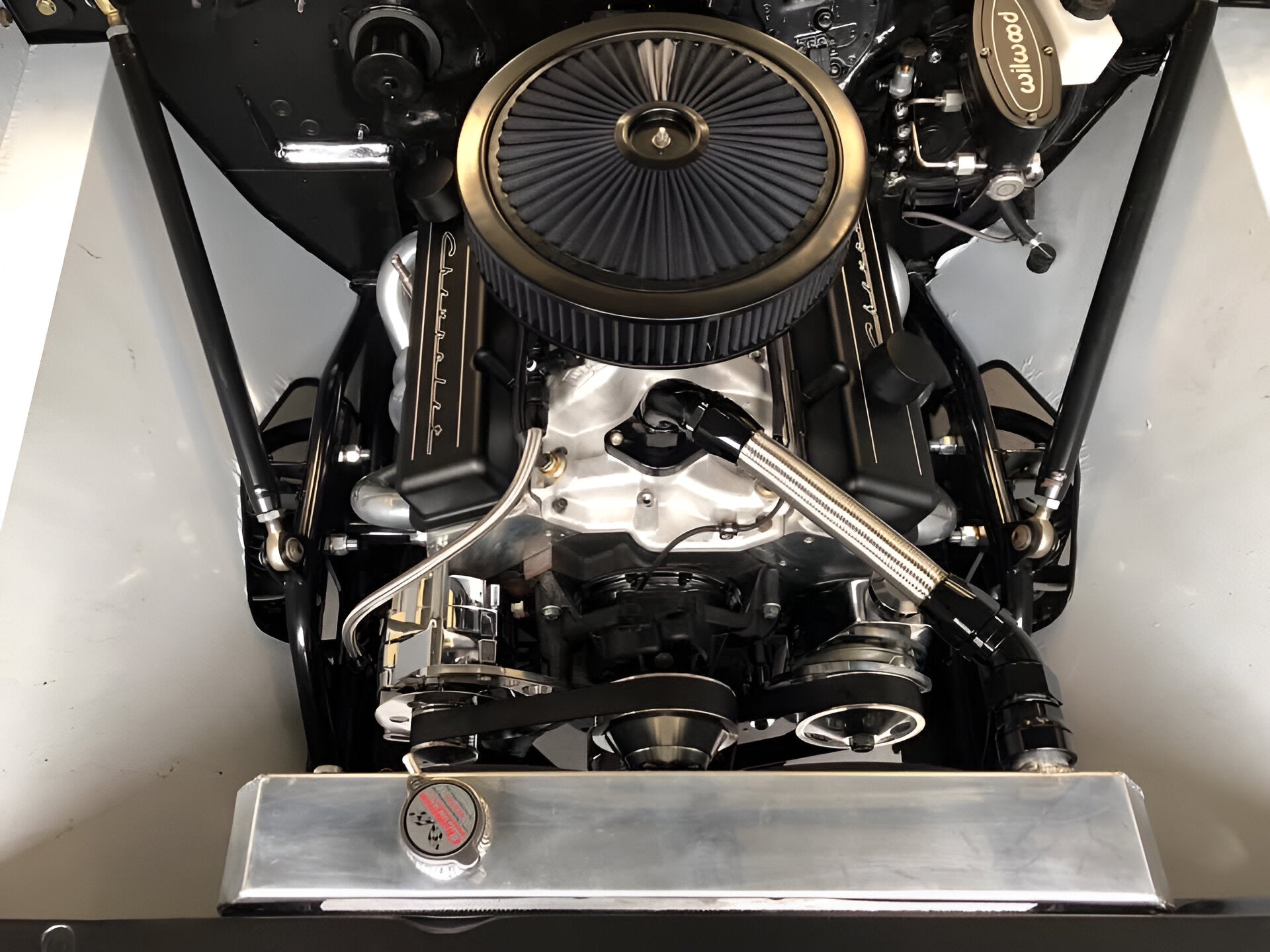

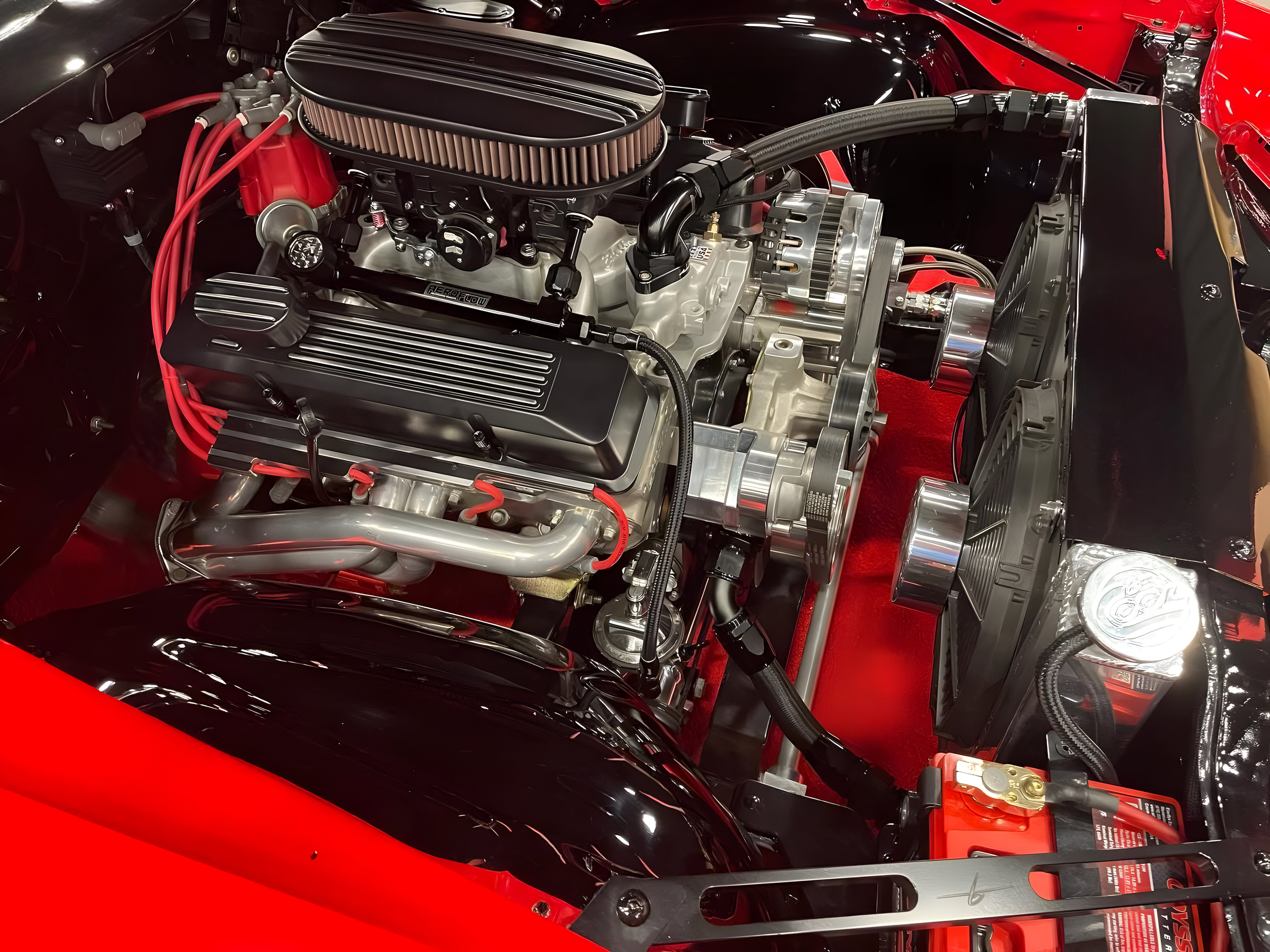

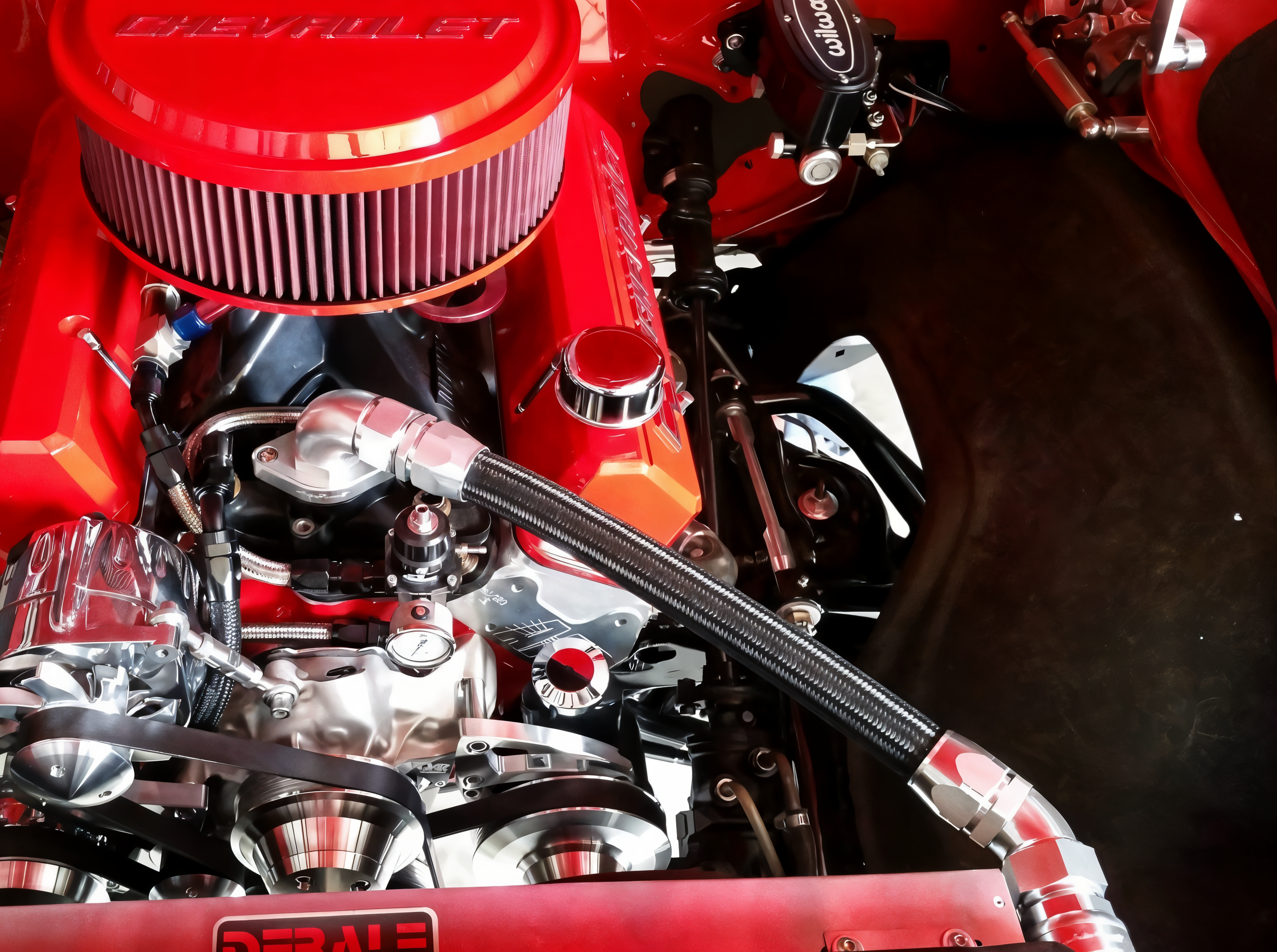

See The AutoPlumb Difference

Real AutoPlumb customers.

Real installs.

Real performance.

How to Convert Your Cooling System to AN

STEP 1:

MEASURE YOUR RADIATOR / PUMP'S O.D.

Use calipers or a micrometer

Measure BEHIND the raised bead

NOTE: If your size is not listed on our website, a radiator water neck can be reduced in size approximately .040" and most water pumps can be reduced in size .050" or more. A file and emery cloth works well to reduce the size, but the method is up to you. Reduce it between the bead and radiator/pump. Adapters can also be installed on water necks that are up to .015" under the listed size.

STEP 2:

DOWNLOAD AND PRINT THE ADAPTER TEMPLATES

Find the adapter template for your measurement here

Transfer the templates to poster board for a stiffer template.

DO NOT use the templates to determine the O.D size to order.

STEP 3:

DOWNLOAD AND PRINT THE THERMOSTAT HOUSING TEMPLATES

Find the thermostat housing template for your brand here

Print a straight, 45°, or 90° depending on which is best for your application.

NOTE: Any angle hose end can be connected directly to a straight thermostat housing if that better suits your application. AutoPlumb AN Adapters can be used on your stock thermostat housing if we do not have a housing for your brand.

STEP 4:

DOWNLOAD AND PRINT THE HOSE END TEMPLATES

Find the hose end templates here

Start by printing which angles you think will work, then proceed to Step 5.

STEP 5:

DETERMINE YOUR HOSE END ANGLES

Mix and match the various angles until you get the ends to align.

Take your time on this step, it is crucial for assembly.

While the hose does bend (refer to the hose radius template), do not rely on the hose to make a bend for you.

STEP 6:

MEASURE YOUR HOSE LENGTH

Measure the distance between the hose end templates.

This measurement is an estimation, always give yourself extra hose in case of errors or if a bend is needed.

Taping the templates and/or having assistance makes this step easier.

STEP 1:

MEASURE YOUR RADIATOR / PUMP'S O.D.

Use calipers or a micrometer

Measure BEHIND the raised bead

STEP 2:

DOWNLOAD AND PRINT THE ADAPTER TEMPLATES

Find the adapter template for your measurement here

Transfer the templates to poster board for a stiffer template.

DO NOT use the templates to determine the O.D size to order.

STEP 3:

DOWNLOAD AND PRINT THE THERMOSTAT HOUSING TEMPLATES

Find the thermostat housing template for your brand here

Print a straight, 45°, or 90° depending on which is best for your application.

NOTE: Any angle hose end can be connected directly to a straight thermostat housing if that better suits your application. AutoPlumb AN Water Neck Adapters can be used on your stock thermostat housing if we do not have a housing for your brand.

STEP 4:

DOWNLOAD AND PRINT THE HOSE END TEMPLATES

Find the hose end templates here

Start by printing which angles you think will work, then proceed to Step 5.

STEP 5:

DETERMINE YOUR HOSE END ANGLES

Mix and match the various angles until you get the ends to align.

Take your time on this step, it is crucial for assembly.

While the hose does bend (refer to the hose radius template), do not rely on the hose to make a bend for you.

STEP 6:

MEASURE YOUR HOSE LENGTH

Measure the distance between the hose end templates.

This measurement is an estimation, always give yourself extra hose in case of errors or if a bend is needed.

Taping the templates and/or having assistance makes this step easier.
